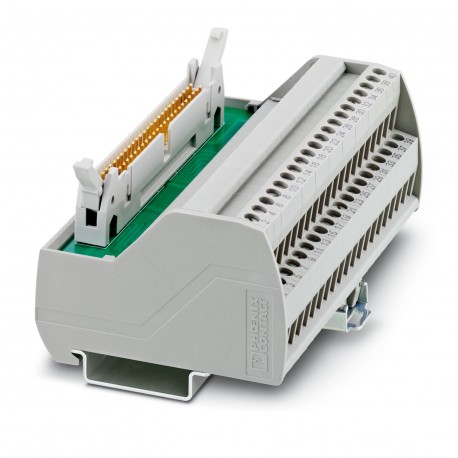

VIP-2/SC/FLK50/PLC 2315227 PHOENIX CONTACT Passive module

VIP-2/SC/FLK50/PLC

2315227

PHOENIX CONTACT

1 Pcs.

Passive module VARIOFACE interconnect module, for 32 channels

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeInterface module
Product familyVARIOFACE Professional
Number of positions50
No. of channels32
Data management status
Article revision08
Insulation characteristics
Overvoltage categoryII
Pollution degree2
Electrical properties
Max. permissible operating voltage25 V AC
60 V DC
Max. current carrying capacity per branch1 A
Max. total current of voltage supply2 A (per byte)
Rated surge voltage0.6 kV
Supported controller SIEMENS ET 200SP HA
Suitable terminal block6DL1193-6TP00-0BH1
6DL1193-6TP00-0DH1
6DL1193-6TP00-0BM1
6DL1193-6TP00-0DM1
Suitable I/O module6DL1131-6BL00-0PH1 (Terminal Block H1/M1)
6DL1132-6BL00-0PH1 (Terminal Block H1/M1)
Supported controller SIEMENS S7-1500
Suitable I/O card6ES7521-1BL00-0AB0
6ES7521-1BL10-0AA0
6ES7522-1BL00-0AB0
6ES7522-1BL01-0AB0
6ES7522-1BL10-0AA0
6ES7523-1BL00-0AA0
Supported controller ALLEN-BRADLEY ControlLogix
Suitable I/O card1756-IA16I
1756-IB16D
1756-IB16I
1756-IB32
1756-IH16I
1756-OB32
1756-IF8
1756-IF16
1756-HSC
1756-M02AE
1756-IF8H
Supported controller ALLEN-BRADLEY PLC 5
Suitable I/O card1771 IBN
1771 OBN
Supported controller GE-FANUC RX3i
Suitable I/O cardIC694MDL754
IC694MDL660
Supported controller HONEYWELL Experion PKS C200
Suitable I/O cardTC-IDD 321
TC-ODD 321
Supported controller MITSUBISHI MELSEC L
Suitable I/O cardLX41C4
LX42C4
LY41NT1P
LY42NT1P
LY41PT1P
LY42PT1P
Supported controller MITSUBISHI MELSEC Q
Suitable I/O cardQX41
QX41-S1
QX42
QX42-S1
QX71
QX72
QY41P
QY42P
QY71
QH42P
QX82
QX82-S1
QY82P
Supported controller SCHNEIDER ELECTRIC Modicon TSX QUANTUM
Suitable I/O cardDDI 353
DDI 841
DAI 453
DDO 353
Connection data
Field level
Connection in acc. with standardIEC / EN
Connection methodScrew connection
Stripping length8 mm
Screw threadM 3
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Tightening torque0.5 Nm ... 0.6 Nm
Controller level
Connection methodIDC/FLK pin strip
Number of connections1
Number of positions50
Pitch2.54 mm
Signaling
Status displayno
Status display presentNo
Dimensions
Item dimensions
Width106.1 mm
Height65.5 mm
Depth56 mm
Material specifications
Colorgray (RAL 7042)
Flammability rating according to UL 94V0
Housing insulation materialPolyamide PA non-reinforced
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Standards and regulations
Standards/regulationsIEC 60664
DIN EN 50178
Mounting
Mounting typeDIN rail mounting
Mounting positionany
Notes
Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

ETIM for 2315227 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) Blade terminal
Number of poles (EF001391) 50
Rated voltage (EF000228) 25 V
Rated current (EF000227) 1 A
Depth (EF000049) 56 mm
Width (EF000008) 106.1 mm
Height (EF000040) 65.5 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
