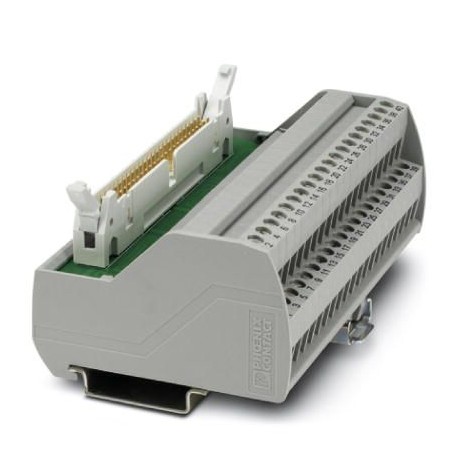

VIP-2/SC/FLK50 (1-40) /S7 2315243 PHOENIX CONTACT Passive module
VIP-2/SC/FLK50 (1-40) /S7
2315243
PHOENIX CONTACT
1 Pcs.
Passive module
VARIOFACE interface module for Siemens SIMATIC® S7-300, with SIMATIC-specific® marking (1 - 40), screw connection, module width: 106.1 mm
Automation > Interface module
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2315243 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 508 (C-5-2017) |
| GTIN | 4046356313087 |
| Weight per Piece (excluding packing) | 211.000 g |
| Custom tariff number | 85366990 |
| Country of origin | US (United States) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
General
| Max. perm. operating voltage | 60 V AC/DC |
|---|---|
| Max. perm. current (per branch) | 1 A |
| Number of positions | 50 |
| Status display | No |
| Mounting position | any |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M 3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Number of positions | 42 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | IDC/FLK pin strip |
| Number of connections | 1 |
| Number of positions | 50 |
| Pitch | 2.54 mm |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| Standards/regulations | IEC 60664 |
| DIN EN 50178 | |
| Rated surge voltage | 0.6 kV |
| Degree of pollution | 2 |
| Overvoltage category | II |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.127250300eCl@ss 6.027242600eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | Screw connection |
| Type of electrical connection, control sided (EF008549) | Blade terminal |
| Number of poles (EF001391) | 50 |
| Rated voltage (EF000228) | 25 V |
| Rated current (EF000227) | 1 A |
| Depth (EF000049) | 56 mm |
| Width (EF000008) | 106.1 mm |
| Height (EF000040) | 65.5 mm |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
