UM 45- 2FLK14/ZFKDS/S7 2965156 PHOENIX CONTACT Passive module

UM 45-2FLK14/ZFKDS/S7

2965156

PHOENIX CONTACT

1 Pcs.

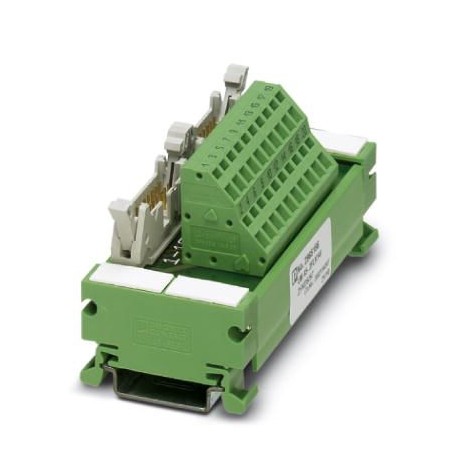

Passive module VARIOFACE interconnect module for Siemens SIMATIC® S7-300, for up to 16 channels with SIMATIC-specific® marking (1 - 20), spring connection, module width: 98 mm

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2965156
Packing unit1 pc
Catalog pagePage 253 (IF-2011)
GTIN4017918126360
Weight per Piece (excluding packing)109.900 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width98 mm
Height45 mm
Depth50 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage60 V DC
Max. perm. current (per branch)1 A
Max. permissible current (separate power supply)max. 3 A (/Byte)
Number of positions14
Status displayNo
Mounting positionany
Degree of protectionIP00

Connection data for connection 1

Connection nameField level
Connection methodSpring-cage connection
Stripping length6 mm
Conductor cross section solid0.14 mm² ... 1.5 mm²
Conductor cross section flexible0.14 mm² ... 1.5 mm²
Conductor cross section AWG26 ... 14

Connection data for connection 2

Connection nameController level
Connection methodIDC/FLK pin strip
Number of connections2
Number of positions14

Supported controller

ControllerGE-FANUC 90-30
- suitable I/O cardIC693 MDL732
IC693 MDL733
IC693 MDL740
IC693 MDL741
IC693 MDL742
IC693 ALG220
IC693 ALG221
IC693 ALG222
IC693 ALG223
IC693 ALG390
IC693 ALG391
IC693 ALG392
IC693 ALG442
ControllerSIEMENS S7-300 / ET 200 M
- suitable I/O cardCPU 312C
CPU 313C-2DP
CPU 314C-2PtP
6ES7 321-1BH50-0AA0
6ES7 321-7BH01-0AB0
6ES7 321-1BH02-0AA0
6ES7 321-1BL00-0AA0
6ES7 322-1BH01-0AA0
6ES7 322-8BF00-0AB0
6ES7 322-1BL00-0AA0
6ES7 323-1BH01-0AA0
6ES7 323-1BL00-0AA0
6ES7 331-7KF02-0AB0
6ES7 331-7KB02-0AB0
6ES7 331-7NF00-0AB0
6ES7 331-7PF01-0AB0
6ES7 331-7PF11-0AB0
6ES7 332-5HD01-0AB0
6ES7 332-5HB01-0AB0
6ES7 332-7ND02-0AB0
6ES7 334-0CE01-0AA0
6ES7 334-0KE00-0AB0
6ES7 335-7HG01-0AB0
6ES7 335-7HG01-0AB0
6ES7 338-4BC01-0AB0
6ES7 350-1AH03-0AE0
6ES7 350-2AH01-0AE0
6ES7 351-1AH01-0AE0
6ES7 352-1AH02-0AE0
6ES7 353-1AH01-0AE0
6ES7 354-1AH01-0AE0
6ES7 355-0VH10-0AE0
6ES7 355-1VH10-0AE0
6ES7 357-4AH01-0AE0
6ES7 321-7BH01-0AB0
6ES7 331-7HF01-0AB0
6ES7 321-1BH10-0AA0
6ES7 322-1BH10-0AA0
CPU 313C
CPU 313C-2PtP
6ES7 336-4GE00-0AB0

Standards and Regulations

Standards/regulationsIEC 60664
DIN EN 50178
Rated insulation voltage63 V
Rated surge voltage0.6 kV
InsulationFunctional insulation
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2965156 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Spring clamp connection
Type of electrical connection, control sided (EF008549) Blade terminal
Number of poles (EF001391) 14
Rated voltage (EF000228) 60 V
Rated current (EF000227) 1 A
Depth (EF000049) 50 mm
Width (EF000008) 98 mm
Height (EF000040) 45 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
