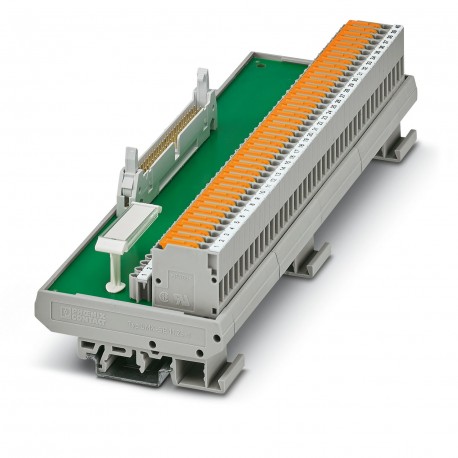

FLKM 50/KDS3-MT/PPA/S7-300 2304490 PHOENIX CONTACT Passive module

FLKM 50/KDS3-MT/PPA/S7-300

2304490

PHOENIX CONTACT

1 Pcs.

Passive module VARIOFACE interconnect module for Siemens SIMATIC® S7-300, with SIMATIC-specific® marking (1 - 40), knife-interruptible terminal block and test socket, module width: 214 mm VARIOFACE termination board for Siemens SIMATIC® S7-300, with SIMATIC®-specific marking (1-40), knife-disconnect terminal block, and test pick-off, module width: 214 mm

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeInterface module
Product familyVARIOFACE
Number of positions50
No. of channels2
4
6
8
16
24
32
Data management status
Article revision09
Insulation characteristics: Air clearances and creepage distances
InsulationFunctional insulation
Overvoltage categoryII
Pollution degree2
Electrical properties
Operating voltage (DC)≤ 60 V DC
Current (per branch)≤ 1 A
Air clearances and creepage distances
Rated insulation voltage63 V
Rated surge voltage0.6 kV (1.2/50 μs)
Supported controller SIEMENS S7-300 / ET 200 M
Suitable I/O cardCPU 313C-2DP
CPU 314C-2PtP
6ES7321-1BL00-0AA0
6ES7322-1BL00-0AA0
6ES7323-1BL00-0AA0
6ES7331-7NF00-0AB0
6ES7331-7PF01-0AB0
6ES7331-7PF11-0AB0
6ES7350-2AH01-0AE0
6ES7357-4AH01-0AE0
CPU 314C-2DP
6ES7332-5HF00-0AB0
6ES7331-7NF10-0AB0
6ES7331-1KF01-0AB0
CPU 313C
CPU 313C-2PtP
Supported controller ALLEN-BRADLEY PLC 5
Suitable I/O card1771 OBN
Connection data
Connection 1 (control level)
Connection in acc. with standardIEC 60603-13
Connection methodIDC/FLK pin strip
Number of connections1
Number of positions50
Insertion/withdrawal cycles> 50
Pitch2.54 mm
Connection 2 (field level)
Connection methodScrew connection with disconnect knife
Stripping length8 mm
Screw threadM3
Number of positions40
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross-section rigid (2 conductors with same cross section)0.2 mm² ... 1 mm²
Conductor cross section flexible0.2 mm² ... 4 mm²
0.25 mm² ... 2.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
Conductor cross section flexible (2 conductors with same cross section)0.2 mm² ... 1 mm²
0.25 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 1 mm² (TWIN ferrule with plastic sleeve)
Conductor cross section AWG24 ... 12
Tightening torque0.5 Nm ... 0.6 Nm
Pitch5.08 mm
Connection 3 (field level)
Connection methodTest socket
Number of positions40
Signaling
Status display presentNo
Dimensions
Item dimensions
Width213.45 mm
Height77 mm
Depth52.3 mm
Material specifications
Colorgray (RAL 7042)
Housing insulation materialPVC
Environmental and real-life conditions
Ambient conditions
Degree of protection (Module)IP00
Degree of protection (Installation location)≥ IP54
Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Altitude≤ 2000 m
Approvals
UKCA
CertificateUKCA-compliant
Standards and regulations
Air clearances and creepage distances
Standards/regulationsEN IEC 60664-1
Mounting
Mounting typeDIN rail mounting
Mounting positionany
Notes
Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

ETIM for 2304490 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) Blade terminal
Number of poles (EF001391) 50
Rated voltage (EF000228) 60 V
Rated current (EF000227) 1 A
Depth (EF000049) 52.3 mm
Width (EF000008) 213.45 mm
Height (EF000040) 77 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
