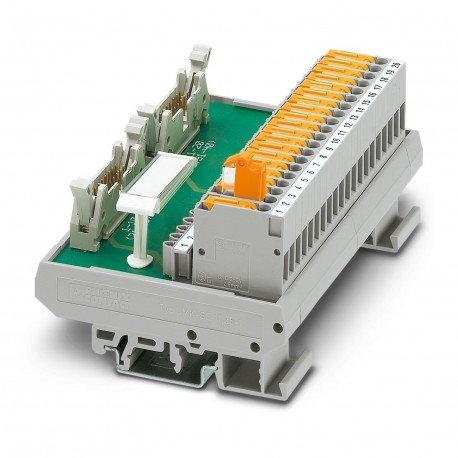

Passive module VARIOFACE interconnect module for Siemens SIMATIC® S7-300, for up to 16 channels with SIMATIC-specific® marking (1 - 20), knife-interruptible terminal block and test socket, module width: 113 mm VARIOFACE module for Siemens SIMATIC® S7-300, for max. 16 channels with SIMATIC® specific marking (1 - 20), disconnector terminal and test socket, module width: 113 mm

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2295062
Packing unit1 pc
Catalog pagePage 534 (C-5-2017)
GTIN4017918339982
Weight per Piece (excluding packing)251.800 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width113 mm
Height77 mm
Depth61 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage60 V DC
Max. perm. current (per branch)1 A
Max. permissible current (separate power supply)3 A (per byte)
Number of positions14
Status displayNo
Mounting positionany
Degree of protectionIP00

Connection data for connection 1

Connection nameField level
Connection in acc. with standardIEC / EN
Connection methodScrew connection with disconnect knife
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data for connection 2

Connection nameController level
Connection methodIDC/FLK pin strip
Number of connections2
Number of positions14
Pitch2.54 mm

Supported controller

ControllerGE-FANUC 90-30
- suitable I/O cardIC693 MDL732
IC693 MDL733
IC693 MDL740
IC693 MDL741
IC693 MDL742
IC693 ALG220
IC693 ALG221
IC693 ALG222
IC693 ALG223
IC693 ALG390
IC693 ALG391
IC693 ALG392
IC693 ALG442
ControllerSIEMENS S7-300 / ET 200 M
- suitable I/O cardCPU 312C
CPU 313C-2DP
CPU 314C-2PtP
6ES7 321-1BH50-0AA0
6ES7 321-7BH01-0AB0
6ES7 321-1BH02-0AA0
6ES7 321-1BL00-0AA0
6ES7 322-1BH01-0AA0
6ES7 322-8BF00-0AB0
6ES7 322-1BL00-0AA0
6ES7 323-1BH01-0AA0
6ES7 323-1BL00-0AA0
6ES7 331-7KF02-0AB0
6ES7 331-7KB02-0AB0
6ES7 331-7NF00-0AB0
6ES7 331-7PF01-0AB0
6ES7 331-7PF11-0AB0
6ES7 332-5HD01-0AB0
6ES7 332-5HB01-0AB0
6ES7 332-7ND02-0AB0
6ES7 334-0CE01-0AA0
6ES7 334-0KE00-0AB0
6ES7 335-7HG01-0AB0
6ES7 335-7HG01-0AB0
6ES7 338-4BC01-0AB0
6ES7 350-1AH03-0AE0
6ES7 350-2AH01-0AE0
6ES7 351-1AH01-0AE0
6ES7 352-1AH02-0AE0
6ES7 353-1AH01-0AE0
6ES7 354-1AH01-0AE0
6ES7 355-0VH10-0AE0
6ES7 355-1VH10-0AE0
6ES7 357-4AH01-0AE0
6ES7 321-7BH01-0AB0
6ES7 321-1BH10-0AA0
6ES7 322-1BH10-0AA0
CPU 313C
CPU 313C-2PtP
6ES7 336-4GE00-0AB0

Standards and Regulations

Standards/regulationsDIN EN 50178
IEC 60664
Rated insulation voltage63 V
Rated surge voltage0.6 kV
InsulationFunctional insulation
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2295062 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) Blade terminal
Number of poles (EF001391) 14
Rated voltage (EF000228) 60 V
Rated current (EF000227) 1 A
Depth (EF000049) 51.48 mm
Width (EF000008) 112.3 mm
Height (EF000040) 79.35 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
