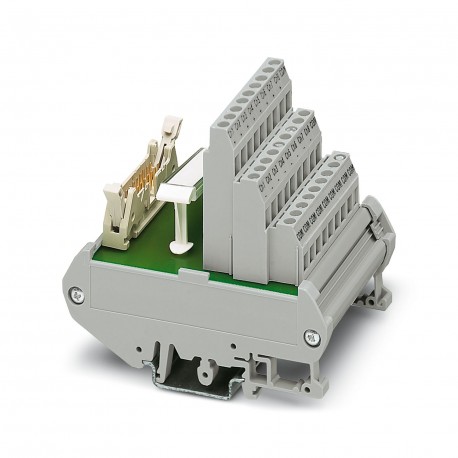

PHOENIX CONTACT FLKM 16/DV FLKM 16/DV 2304432 PHOENIX CONTACT Interface module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FLKM 16/DV 2304432 PHOENIX CONTACT Interface module

FLKM 16/DV

2304432

PHOENIX CONTACT

1 Pcs.

Interface module Interconnect module with 1:1 link (convenient for Delta V controller) Interface module with 1:1 connection (suitable for Delta V control system)

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeInterface module
Product familyVARIOFACE
Number of positions16
No. of channels8
Data management status
Article revision07
Insulation characteristics: Air clearances and creepage distances
InsulationFunctional insulation
Overvoltage categoryII
Pollution degree2
Electrical properties
Operating voltage (AC)≤ 30 V AC
Operating voltage (DC)≤ 60 V DC
Current (per branch)≤ 1 A
Air clearances and creepage distances
Rated insulation voltage63 V
Rated surge voltage0.6 kV (1.2/50 μs)
Supported controller EMERSON DeltaV
Suitable I/O cardVE4001S2T2B3
VE4001S2T2B3 Series 2
VE4001S2T1B3
VE4002S1T1B3
VE4002S1T2B3
VE4002S1T2B3 Series 2
VE4003S2B4
VE4005S2B3
VE4003S2B5
Connection data
Connection 1 (control level)
Connection in acc. with standardIEC 60603-13
Connection methodIDC/FLK pin strip
Number of connections1
Number of positions16
Insertion/withdrawal cycles> 50
Pitch2.54 mm
Connection 2 (field level)
Connection methodScrew connection
Stripping length7 mm
Screw threadM3
Number of positions16
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross-section rigid (2 conductors with same cross section)0.2 mm² ... 1.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 2.5 mm² (Ferrule with plastic sleeve)
Conductor cross section flexible (2 conductors with same cross section)0.2 mm² ... 1.5 mm²
0.25 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 0.5 mm² (TWIN ferrule with plastic sleeve)
Conductor cross section AWG24 ... 12
Tightening torque0.5 Nm ... 0.6 Nm
Pitch5.08 mm
Signaling
Status display presentNo
Dimensions
Item dimensions
Width44.5 mm
Height89.6 mm
Depth65.9 mm
Material specifications
Colorgray (RAL 7042)
Housing insulation materialPVC
Environmental and real-life conditions
Ambient conditions
Degree of protection (Module)IP00
Degree of protection (Installation location)≥ IP54
Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Altitude≤ 2000 m
Approvals
UKCA
CertificateUKCA-compliant
Standards and regulations
Air clearances and creepage distances
Standards/regulationsEN IEC 60664-1
Mounting
Mounting typeDIN rail mounting
Mounting positionany
Notes
Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

ETIM for 2304432 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) Blade terminal
Number of poles (EF001391) 16
Rated voltage (EF000228) 30 V
Rated current (EF000227) 1 A
Depth (EF000049) 65.9 mm
Width (EF000008) 44.5 mm
Height (EF000040) 89.6 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
