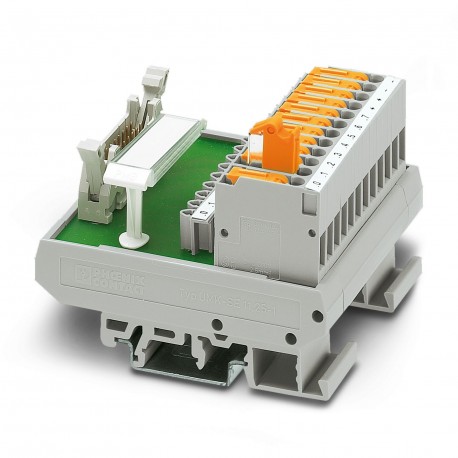

PHOENIX CONTACT FLKM 14/KDS3-MT/PPA/PLC FLKM 14/KDS3-MT/PPA/PLC 2290423 PHOENIX CONTACT Passive module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FLKM 14/KDS3-MT/PPA/PLC 2290423 PHOENIX CONTACT Passive module

FLKM 14/KDS3-MT/PPA/PLC

2290423

PHOENIX CONTACT

1 Pcs.

Passive module VARIOFACE 8-channel interconnect module with blade and socket interruptible terminals for field and system side testing VARIOFACE interface module, for 8 channels with knife disconnect terminal blocks and test sockets to the peripherals and the system

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeInterface module
Product familyVARIOFACE
Number of positions14
No. of channels8
Data management status
Article revision09
Insulation characteristics: Air clearances and creepage distances
InsulationFunctional insulation
Overvoltage categoryII
Pollution degree2
Electrical properties
Operating voltage (DC)≤ 60 V DC
Current (per branch)≤ 1 A
Current (Voltage supply)≤ 3 A
Air clearances and creepage distances
Rated insulation voltage63 V
Rated surge voltage0.6 kV (1.2/50 μs)
Supported controller SIEMENS S7-1500
Suitable I/O card6ES7521-1BH00-0AB0
6ES7521-1BH50-0AA0
6ES7521-1BL00-0AB0
6ES7521-1BP00-0AA0 (Sinking mode)
6ES7522-1BH00-0AB0
6ES7522-1BH01-0AB0
6ES7522-1BL00-0AB0
6ES7522-1BL01-0AB0
6ES7522-1BP00-0AA0
6ES7522-1BP50-0AA0
6ES7523-1BP50-0AA0 (DI32 (Sinking mode)/DQ32)
Supported controller ABB S800 I/O
Suitable I/O cardDI810
DI811
DI814
DI818
DI830
DI831
DI840
DO810
DO814
DO818
DO840
Supported controller ALLEN-BRADLEY ControlLogix
Suitable I/O card1756-IB32
1756-OB32
1756-IN16
1756-IB16
1756-IC16
1756-OB16E
Supported controller SCHNEIDER ELECTRIC Modicon TSX QUANTUM
Suitable I/O cardDDI 353
DDI 853
DAI 453
DDO 353
Supported controller SIEMENS S7-400
Suitable I/O card6ES7421-1BL01-0AA0
6ES7422-1BL00-0AA0
6ES7422-7BL00-0AB0
Supported controller MITSUBISHI MELSEC Q
Suitable I/O cardQX81
QY81P
QX41
QX41-S1
QX42
QX42-S1
QX71
QX72
QY41P
QY42P
QY71
QH42P
QX82
QX82-S1
QY82P
Supported controller MITSUBISHI MELSEC L
Suitable I/O cardLX41C4
LX42C4
LY41NT1P
LY42NT1P
LY41PT1P
LY42PT1P
Supported controller HONEYWELL Experion PKS C200
Suitable I/O cardTC-IDD 321
TC-ODD 321
Supported controller SIEMENS S7-300 / ET 200 M
Suitable I/O cardCPU 313C-2DP
CPU 314C-2DP
CPU 314C-2PtP
6ES7321-1BH02-0AA0
6ES7321-1BL00-0AA0
6ES7322-1BH01-0AA0
6ES7322-1BL00-0AA0
6ES7323-1BH01-0AA0
6ES7323-1BL00-0AA0
6ES7321-1BH10-0AA0
6ES7322-1BH10-0AA0
CPU 313C
CPU 313C-2PtP
Supported controller GE-FANUC RX3i
Suitable I/O cardIC694MDL754
IC694MDL660
Connection data
Connection 1 (control level)
Connection in acc. with standardIEC 60603-13
Connection methodIDC/FLK pin strip
Number of connections1
Number of positions14
Insertion/withdrawal cycles> 50
Pitch2.54 mm
Connection 2 (field level)
Connection methodScrew connection with disconnect knife
Stripping length8 mm
Screw threadM3
Number of positions12
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross-section rigid (2 conductors with same cross section)0.2 mm² ... 1 mm²
Conductor cross section flexible0.2 mm² ... 4 mm²
0.25 mm² ... 2.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
Conductor cross section flexible (2 conductors with same cross section)0.2 mm² ... 1 mm²
0.25 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 1 mm² (TWIN ferrule with plastic sleeve)
Conductor cross section AWG24 ... 12
Tightening torque0.5 Nm ... 0.6 Nm
Pitch5.08 mm
Connection 3 (field level)
Connection methodTest socket
Number of positions10
Signaling
Status display presentNo
Dimensions
Item dimensions
Width67.35 mm
Height77.07 mm
Depth51.43 mm
Material specifications
Colorgray (RAL 7042)
Housing insulation materialPVC
Environmental and real-life conditions
Ambient conditions
Degree of protection (Module)IP00
Degree of protection (Installation location)≥ IP54
Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Altitude≤ 2000 m
Approvals
UKCA
CertificateUKCA-compliant
Standards and regulations
Air clearances and creepage distances
Standards/regulationsEN IEC 60664-1
Mounting
Mounting typeDIN rail mounting
Mounting positionany
Notes
Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

ETIM for 2290423 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) Blade terminal
Number of poles (EF001391) 14
Rated voltage (EF000228) 60 V
Rated current (EF000227) 1 A
Depth (EF000049) 51.43 mm
Width (EF000008) 67.35 mm
Height (EF000040) 77.07 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
