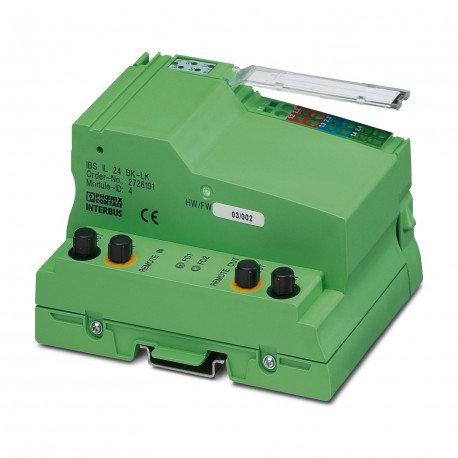

PHOENIX CONTACT IBS IL 24 BK-LK-2MBD-PAC IBS IL 24 BK-LK-2MBD-PAC 2862068 PHOENIX CONTACT INTERBUS bus coupler, with fiber optic connection, 24 V DC,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IBS IL 24 BK-LK-2MBD-PAC 2862068 PHOENIX CONTACT INTERBUS bus coupler, with fiber optic connection, 24 V DC,..

IBS IL 24 BK-LK-2MBD-PAC

2862068

PHOENIX CONTACT

1 Pcs.

INTERBUS bus coupler, with fiber optic connection, 24 V DC, transmission speed 2 Mbaud, complete with accessories (plug and labeling field) Inline, Bus coupler, INTERBUS, F-SMA connector, local bus transmission rate:2 MBit/s, protection index: IP20, including Inline connector and marking surface Inline, Bus coupler, INTERBUS, F-SMA connector, transmission speed in the local bus: 2 Mbps, degree of protection: IP20, including Inline connector and labeling field

Automation > Fieldbus, decentr. periphery - communication module
I/O

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Dimensions
Dimensional drawingcrqbynzttu.jpg
Width85 mm
Height119.8 mm
Depth71.5 mm
Notes
Note on application
Note on applicationOnly for industrial use
Interfaces
INTERBUS
Number of interfaces2
Connection methodF-SMA connector
Transmission speed2 Mbps
Transmission physicsFO
Inline local bus
Number of interfaces1
Connection methodInline data jumper
Transmission speed2 Mbps
System properties
System limits
Number of local bus devices that can be connected63
Number of devices with parameter channel62
Number of supported branch terminals with remote bus branchmax. 15
Module
ID code (dec.)04
ID code (hex)04
Length code (hex)00
Length code (dec)00
Process data channel0 bit
Input address area0 Byte
Output address area0 Byte
Register length0 bit
Product properties
Product typeI/O component
Product familyInline
Typemodular
Scope of deliveryincluding Inline connector and labeling field
Electrical properties
Maximum power dissipation for nominal condition3 W
Protective circuitReverse polarity protection
Potentials: Bus coupler supply UBK; Communications power UL(7.5 V) and the analog supply UANA(24 V) are generated from the bus coupler supply.
Supply voltage24 V DC (via Inline connector)
Supply voltage range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current drawmax. 1.25 A (with max. number of connected I/O terminal blocks)
Potentials: Communications power (UL)
Supply voltage7.5 V DC ±5 %
Potentials: Supply of analog modules (UANA)
Supply voltage24 V DC
Supply voltage range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Electrical isolation/isolation of the voltage ranges
Test voltage: 7.5 V communications power, 24 V analog supply, 24 V bus coupler supply/functional ground500 V AC, 50 Hz, 1 min.
Connection data
Connection technology
Connection nameInline connector
Conductor connection
Connection methodSpring-cage connection
Conductor cross section rigid0.09 mm² ... 1.5 mm²
Conductor cross section flexible0.09 mm² ... 1.5 mm²
Conductor cross section AWG28 ... 16
Stripping length8 mm
Inline connector
Connection methodSpring-cage connection
Conductor cross section, rigid0.09 mm² ... 1.5 mm²
Conductor cross section, flexible0.09 mm² ... 1.5 mm²
Conductor cross section AWG28 ... 16
Stripping length8 mm
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-25 °C ... 55 °C
Degree of protectionIP20
Air pressure (operation)80 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)-25 °C ... 85 °C
Permissible humidity (operation)75 % ... 85 %
Permissible humidity (storage/transport)75 % ... 85 %
Mounting
Mounting typeDIN rail mounting

ETIM for 2862068 PLC's (EC001604)
Feature Name Feature Value
Supply voltage DC (EF007534) 19.2 V
Voltage type (supply voltage) (EF002991) DC
Supporting protocol for EtherCAT (EF017564) No
Supporting protocol for EtherNet/IP (EF007521) No
Radio standard Bluetooth (EF007178) No
Radio standard WLAN 802.11 (EF007179) No
Radio standard GPRS (EF008523) No
IO link master (EF007298) No
System accessory (EF004118) Yes
Degree of protection (IP) (EF005474) IP20
With potential separation (EF003272) Yes
Fieldbus connection over separate bus coupler possible (EF004002) Yes
Suitable for rail mounting (EF003972) Yes
Wall mounting/direct mounting (EF007020) No
Front built-in possible (EF007016) No
Rack-assembly possible (EF007018) No
Suitable for safety functions (EF001597) No
Performance level according to EN ISO 13849-1 (EF007399) None
Appendant operation agent (Ex ia) (EF004141) No
Appendant operation agent (Ex ib) (EF004142) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 85.05 mm
Height (EF000040) 120 mm
Depth (EF000049) 70.475852 mm
