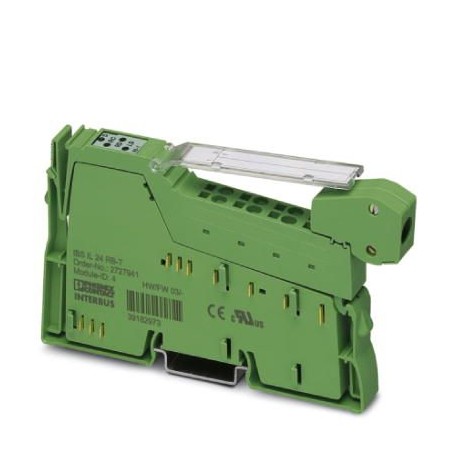

PHOENIX CONTACT IBS IL 24 RB-T-PAC IBS IL 24 RB-T-PAC 2861441 PHOENIX CONTACT Branch terminal View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IBS IL 24 RB-T-PAC 2861441 PHOENIX CONTACT Branch terminal

IBS IL 24 RB-T-PAC

2861441

PHOENIX CONTACT

1 Pcs.

Branch terminal INTERBUS branch terminal block, complete with accessories (connector and marking surface), with remote bus switch, 24 V DC

Automation > Fieldbus, decentr. periphery - communication module
I/O

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2861441
Packing unit1 pc
Catalog pagePage 170 (C-6-2017)
GTIN4017918894375
Weight per Piece (excluding packing)67.000 g
Custom tariff number85389091
Country of originDE (Germany)

Note

Utilization restriction1

Dimensions

Dimensional drawing
Width12.2 mm
Height135 mm
Depth71.5 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 55 °C
Ambient temperature (storage/transport)-25 °C ... 85 °C
Permissible humidity (operation)10 % ... 95 % (according to DIN EN 61131-2)
Permissible humidity (storage/transport)10 % ... 95 % (according to DIN EN 61131-2)
Air pressure (operation)70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)70 kPa ... 106 kPa (up to 3000 m above sea level)
Degree of protectionIP20

Interfaces

DesignationINTERBUS
Connection methodInline data jumper
Transmission speed500 kbps
DesignationINTERBUS
Connection methodInline shield connector
Transmission speed500 kbps
Transmission physicsRS-485
DesignationInline local bus
Connection methodInline data jumper
Transmission physicsCopper

Inline potentials

DesignationSupply of analog modules (UANA)
Supply voltage24 V DC (via voltage jumper)
Supply voltage range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current consumptiontyp. 29 mA

General

Mounting typeDIN rail
Net weight67 g
Note on weight specificationswith connector

Electrical isolation

Test section5 V supply, incoming remote bus, 5 V supply outgoing remote bus, 5 V supply logic 500 V AC 50 Hz 1 min.
Remote bus branch 500 V AC 50 Hz 1 min.
Functional earth ground 500 V AC 50 Hz 1 min.

Standards and Regulations

Connection in acc. with standardCUL
Protection classIII, IEC 61140, EN 61140, VDE 0140-1

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 2861441 PLC's (EC001604)
Feature Name Feature Value
Supporting protocol for EtherCAT (EF017564) No
Supporting protocol for EtherNet/IP (EF007521) No
Radio standard Bluetooth (EF007178) No
Radio standard WLAN 802.11 (EF007179) No
Radio standard GPRS (EF008523) No
IO link master (EF007298) No
System accessory (EF004118) Yes
Degree of protection (IP) (EF005474) IP20
With potential separation (EF003272) Yes
Fieldbus connection over separate bus coupler possible (EF004002) Yes
Suitable for rail mounting (EF003972) Yes
Wall mounting/direct mounting (EF007020) No
Front built-in possible (EF007016) No
Rack-assembly possible (EF007018) No
Suitable for safety functions (EF001597) No
Performance level according to EN ISO 13849-1 (EF007399) None
Appendant operation agent (Ex ia) (EF004141) No
Appendant operation agent (Ex ib) (EF004142) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 12.15 mm
Height (EF000040) 136.04 mm
Depth (EF000049) 70.51 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
