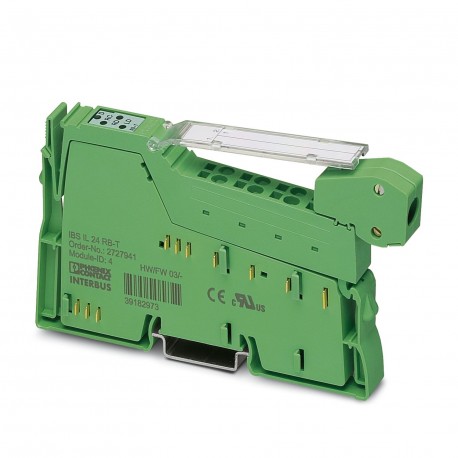

PHOENIX CONTACT IBS IL 24 RB-T-2MBD-PAC IBS IL 24 RB-T-2MBD-PAC 2861962 PHOENIX CONTACT Branch terminal View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IBS IL 24 RB-T-2MBD-PAC 2861962 PHOENIX CONTACT Branch terminal

IBS IL 24 RB-T-2MBD-PAC

2861962

PHOENIX CONTACT

1 Pcs.

Branch terminal INTERBUS branch terminal block, 2MBD, with accessories, with remote bus switch, 24 V DC Inline, branch terminal, INTERBUS, Inline shield plug, with remote bus branch, transmission speed in the local bus: 2 Mbps, degree of protection: IP20, including Inline connector and marking field

Automation > Fieldbus, decentr. periphery - communication module
I/O

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Dimensions
Dimensional drawingnmwuvoqfyi.jpg
Width12.2 mm
Height135 mm
Depth71.5 mm
Notes
Note on application
Note on applicationOnly for industrial use
Interfaces
INTERBUS
Connection methodInline data jumper
Transmission speed2 Mbps
INTERBUS
Connection methodInline shield connector
Transmission speed2 Mbps
Transmission physicsRS-485
Inline local bus
Connection methodInline data jumper
Transmission speed2 Mbps
Transmission physicsCopper
System properties
System limits
Number of local bus devices that can be connectedmax. 63 (Consider the logic current consumed by the devices; the branch terminal does not count as an Inline station device.)
Module
ID code (dec.)04
ID code (hex)04
Length code (hex)0
Length code (dec)0
Process data channel0 bit
Input address area0 Byte
Output address area0 Byte
Register length0 bit
Required parameter data0 Byte
Required configuration data0 Byte
Product properties
Product typeI/O component
Product familyInline
Typemodular
Scope of deliveryincluding Inline connector and labeling field
Special propertieswith remote bus branch
Data management status
Article revision07
Electrical properties
Maximum power dissipation for nominal condition0.7 W
Potentials: Supply of analog modules (UANA)
Supply voltage24 V DC (via voltage jumper)
Supply voltage range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current drawtyp. 29 mA
Electrical isolation/isolation of the voltage ranges
Test voltage: 5 V supply, incoming remote bus, electrically isolated from 5 V supply, outgoing remote bus500 V AC, 50 Hz, 1 min.
Test voltage: 5 V supply, incoming remote bus, electrically isolated from 7.5 V logics supply, 24 V analog supply, 24 V bus terminal module supply, 5 V logics supply branch terminal block500 V AC, 50 Hz, 1 min.
Test voltage: 5 V supply, incoming remote bus, electrically isolated from 24 V main supply, 24 V segment supply500 V AC, 50 Hz, 1 min.
Test voltage: 5 V supply incoming remote bus / functional ground500 V AC, 50 Hz, 1 min.
Test voltage: 5 V supply, outgoing remote bus, electrically isolated from 5 V supply, incoming remote bus500 V AC, 50 Hz, 1 min.
Test voltage: 5 V supply, outgoing remote bus, electrically isolated from 7.5 V logics supply, 24 V analog supply, 24 V bus terminal module supply, 5 V logics supply branch terminal block500 V AC, 50 Hz, 1 min.
Test voltage: 5 V supply, outgoing remote bus, electrically isolated from 24 V main supply, 24 V segment supply500 V AC, 50 Hz, 1 min.
Test voltage: 5 V supply outgoing remote bus, electrically isolated from functional ground500 V AC, 50 Hz, 1 min.
Test voltage: 7.5 V logics supply, 24 V analog supply, 24 V bus terminal module supply, 5 V logics supply branch terminal block, electrically isolated from 5 V supply incoming remote bus500 V AC, 50 Hz, 1 min.
Test voltage: 7.5 V logics supply, 24 V analog supply, 24 V bus terminal module supply, 5 V logics supply branch terminal block, electrically isolated from 5 V supply outgoing remote bus500 V AC, 50 Hz, 1 min.
Test voltage: 7.5 V logics supply, 24 V analog supply, 24 V bus terminal module supply, 5 V logics supply branch terminal block, electrically isolated from 24 V main supply, 24 V segment supply500 V AC, 50 Hz, 1 min.
Test voltage: 7.5 V communications power, 24 V analog supply, 24 V bus terminal module supply, 5 V communications power, bus branch terminal electrically isolated from functional ground500 V AC, 50 Hz, 1 min.
Test voltage: 24 V main supply, 24 V segment supply, electrically isolated from 5 V supply, incoming remote bus500 V AC, 50 Hz, 1 min.
Test voltage: 24 V main supply, 24 V segment supply, electrically isolated from 5 V supply, outgoing remote bus500 V AC, 50 Hz, 1 min.
Test voltage: 24 V main supply, 24 V segment supply, electrically isolated from 7.5 V logics supply, 24 V analog supply, 24 V bus terminal module supply, 5 V logics supply branch terminal block500 V AC, 50 Hz, 1 min.
Test voltage: 24 V main supply, 24 V segment supply, electrically isolated from the functional ground500 V AC, 50 Hz, 1 min.
Connection data
Connection technology
Connection nameInline connector
Conductor connection
Connection methodSpring-cage connection
Conductor cross section rigid0.08 mm² ... 1.5 mm²
Conductor cross section flexible0.08 mm² ... 1.5 mm²
Conductor cross section AWG28 ... 16
Stripping length8 mm
Inline connector
Connection methodSpring-cage connection
Conductor cross section, rigid0.08 mm² ... 1.5 mm²
Conductor cross section, flexible0.08 mm² ... 1.5 mm²
Conductor cross section AWG28 ... 16
Stripping length8 mm
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-25 °C ... 55 °C
Degree of protectionIP20
Air pressure (operation)70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)-25 °C ... 85 °C
Permissible humidity (operation)10 % ... 95 % (according to DIN EN 61131-2)
Permissible humidity (storage/transport)10 % ... 95 % (according to DIN EN 61131-2)
Standards and regulations
Protection classIII (IEC 61140, EN 61140, VDE 0140-1)
Mounting
Mounting typeDIN rail mounting

ETIM for 2861962 PLC's (EC001604)
Feature Name Feature Value
Supply voltage DC (EF007534) 24 V
Supporting protocol for EtherCAT (EF017564) No
Supporting protocol for EtherNet/IP (EF007521) No
Radio standard Bluetooth (EF007178) No
Radio standard WLAN 802.11 (EF007179) No
Radio standard GPRS (EF008523) No
IO link master (EF007298) No
System accessory (EF004118) Yes
Degree of protection (IP) (EF005474) IP20
With potential separation (EF003272) Yes
Fieldbus connection over separate bus coupler possible (EF004002) Yes
Suitable for rail mounting (EF003972) Yes
Wall mounting/direct mounting (EF007020) No
Front built-in possible (EF007016) No
Rack-assembly possible (EF007018) No
Suitable for safety functions (EF001597) No
Performance level according to EN ISO 13849-1 (EF007399) None
Appendant operation agent (Ex ia) (EF004141) No
Appendant operation agent (Ex ib) (EF004142) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 12.15 mm
Height (EF000040) 136.04 mm
Depth (EF000049) 70.51 mm
