View larger
Images are for illustrative purposes only. Please refer to data sheet for details

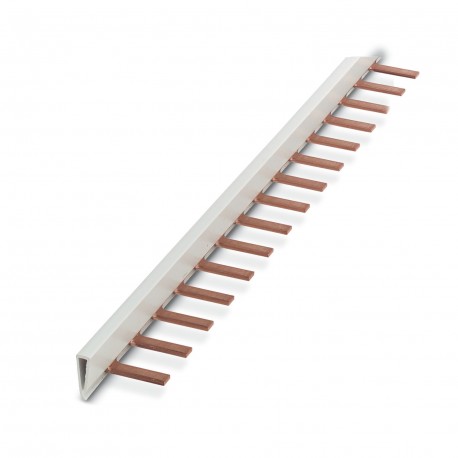

EB 56-18 3009299 PHOENIX CONTACT Insertion bridge
EB 56-18
3009299
PHOENIX CONTACT
5 Pcs.
Insertion bridge
Bridge comb, pitch: 18 mm, color: gray
Insertion bridge, pitch: 18 mm, number of positions: 56, color: gray
Connectors > Cross-connector for terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Insertion bridge |
| Number of positions | 56 |
| Pitch | 18 mm |
| Data management status | |
| Article revision | 03 |
Dimensions
| Dimensional drawing |  |
| Pitch | 18 mm |
Material specifications
| Color | gray (RAL 7042) |
| Material | Copper |
| Insulating material | PA |
Mounting
| Mounting type | Screw mounting |
| Feature Name | Feature Value |
|---|---|
| Explosion-tested version 'Ex e' (EF008498) | No |
| Mounting method (EF000003) | Screw fix |
| Modular spacing (EF000394) | 18 mm |
| Colour (EF000007) | Grey |
