View larger
Images are for illustrative purposes only. Please refer to data sheet for details

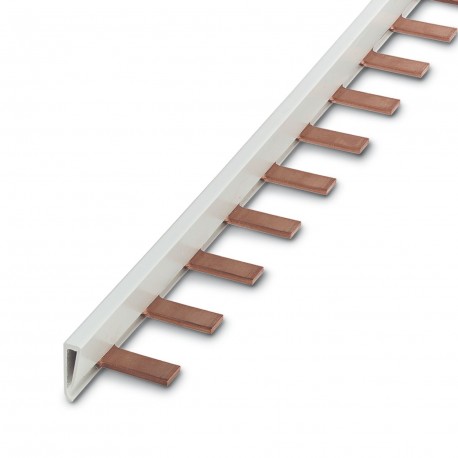

EB 36-27 3009341 PHOENIX CONTACT Insertion bridge
EB 36-27
3009341
PHOENIX CONTACT
1 Pcs.
Insertion bridge
Bridge comb, pitch: 27 mm, color: gray
Comb jumper, pitch: 27 mm, number of poles: 36, colour: grey
Connectors > Cross-connector for terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3009341 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 468 (C-1-2017) |
| GTIN | 4017918091798 |
| Weight per Piece (excluding packing) | 535.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141199eCl@ss 4.127141199eCl@ss 5.027141140eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141140eCl@ss 8.027141140eCl@ss 9.027141140
| Feature Name | Feature Value |
|---|---|
| Explosion-tested version 'Ex e' (EF008498) | No |
| Mounting method (EF000003) | Screw fix |
| Modular spacing (EF000394) | 27 mm |
| Colour (EF000007) | Grey |
