View larger
Images are for illustrative purposes only. Please refer to data sheet for details

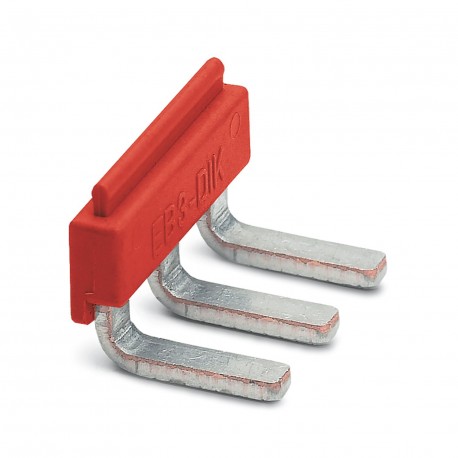

EB 3- DIK RD 2716745 PHOENIX CONTACT Insertion bridge
EB 3-DIK RD
2716745
PHOENIX CONTACT
10 Pcs.
Insertion bridge
Bypass comb, pitch: 6.15 mm, colour: red
Insertion bridge, pitch: 6.15 mm, number of positions: 3, color: red
Connectors > Cross-connector for terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Insertion bridge |
| Number of positions | 3 |
| Pitch | 6.15 mm |
| Data management status | |
| Article revision | 00 |
Dimensions
| Pitch | 6.15 mm |
Material specifications
| Color | red (RAL 3001) |
| Material | Copper |
| Insulating material | PA |
Mounting
| Mounting type | Screw mounting |
| Feature Name | Feature Value |
|---|---|
| Explosion-tested version 'Ex e' (EF008498) | No |
| Mounting method (EF000003) | Screw fix |
| Modular spacing (EF000394) | 6.15 mm |
| Colour (EF000007) | Red |
