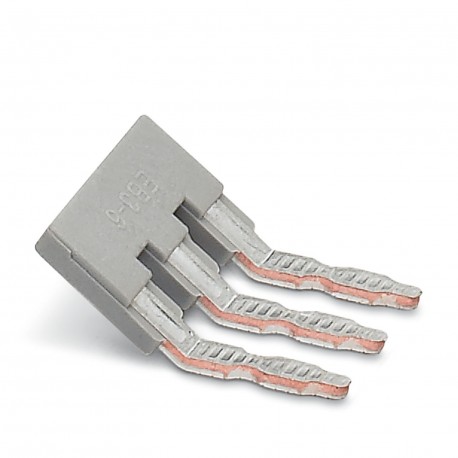

PHOENIX CONTACT EB 3-6 EB 3- 6 0201142 PHOENIX CONTACT Insertion bridge, Number of positions: 3, Color: gray View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EB 3- 6 0201142 PHOENIX CONTACT Insertion bridge, Number of positions: 3, Color: gray

EB 3-6

0201142

PHOENIX CONTACT

100 Pcs.

Insertion bridge, Number of positions: 3, Color: gray Bridge comb, pitch: 6.2 mm, colour: grey Insertion bridge, pitch: 6.2 mm, number of positions: 3, color: gray

Connectors > Cross-connector for terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeInsertion bridge
Number of positions3
Pitch6.2 mm
Data management status
Article revision02
Dimensions
Pitch6.2 mm
Material specifications
Colorgray (RAL 7042)
MaterialCuZn (nickel-plated)
Insulating materialPA
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-60 °C ... 105 °C
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (storage/transport)30 % ... 70 %
Mounting
Mounting typeScrew mounting
