View larger
Images are for illustrative purposes only. Please refer to data sheet for details

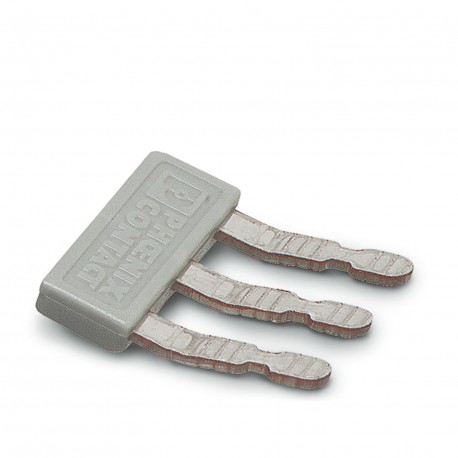

EB 3- 5 1401145 PHOENIX CONTACT Insertion bridge
EB 3-5
1401145
PHOENIX CONTACT
100 Pcs.
Insertion bridge
Bridge comb, pitch: 5 mm, color: gray
Insertion bridge, pitch: 5 mm, number of positions: 3, color: gray
Connectors > Cross-connector for terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Insertion bridge |
| Number of positions | 3 |
| Pitch | 5 mm |
| Data management status | |
| Article revision | 02 |
Dimensions
| Pitch | 5 mm |
Material specifications
| Color | gray (RAL 7042) |
| Material | Copper |
| Insulating material | PA |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting
| Mounting type | Screw mounting |
| Feature Name | Feature Value |
|---|---|
| Explosion-tested version 'Ex e' (EF008498) | No |
| Mounting method (EF000003) | Screw fix |
| Modular spacing (EF000394) | 5 mm |
| Colour (EF000007) | Grey |
