View larger
Images are for illustrative purposes only. Please refer to data sheet for details

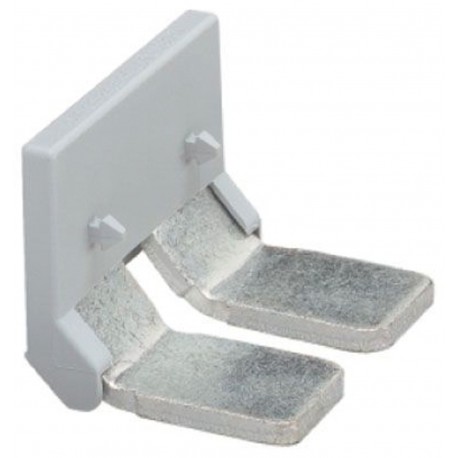

EB 2-36/UKH 0201401 PHOENIX CONTACT Insertion bridge
EB 2-36/UKH
0201401
PHOENIX CONTACT
10 Pcs.
Insertion bridge
Bridge comb, pitch: 36 mm, color: grey
Insertion bridge, pitch: 36 mm, number of positions: 2, color: gray
Connectors > Cross-connector for terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Insertion bridge |
| Number of positions | 2 |
| Pitch | 36 mm |
| Data management status | |
| Article revision | 00 |
Dimensions
| Pitch | 36 mm |
Material specifications
| Color | gray (RAL 7042) |
| Material | Copper |
| Insulating material | PVC |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting
| Mounting type | Screw mounting |
