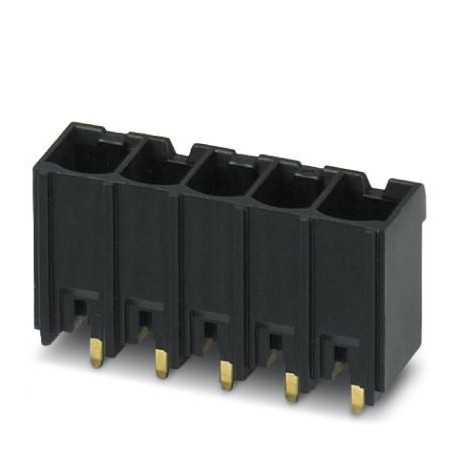

VS-MSTBAH 2,5/ 5-GB-5,08-BK-A 1657915 PHOENIX CONTACT Female insert
VS-MSTBAH 2,5/ 5-GB-5,08-BK-A
1657915
PHOENIX CONTACT
50 Pcs.
Female insert
MSTB contact insert, for mounting on printed circuit boards, 24 V, 5 poles, with angled solder pins, RAL 9005 (black), for recessed frame VS-PPC-F2-MSTB-...-1R-P
Automation > Fibre optic attenuator
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1657915 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 368 (C-2-2017) |
| GTIN | 4046356132497 |
| Weight per Piece (excluding packing) | 2.540 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General data
| Note | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 11 Connectors for 24 Volt Power Supply Cabling and Chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |
|---|---|
| Number of positions | 5 |
| Alternative short product description | Contact insert for PCB mounting |
| Rated voltage (III/3) | 24 V |
| COMBICON connection data | 2.5 mm² |
| Connection method | Printed circuit connection |
| Contact material | Copper alloy |
| Contact carrier material | PBT |
| Contact surface material | Gold over nickel |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440205eCl@ss 8.027440205eCl@ss 9.027440205
| Feature Name | Feature Value |
|---|---|
| Modular spacing contacts (EF007326) | 5.08 mm |
| Modular spacing connections (EF006827) | 5.08 mm |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
