View larger
Images are for illustrative purposes only. Please refer to data sheet for details

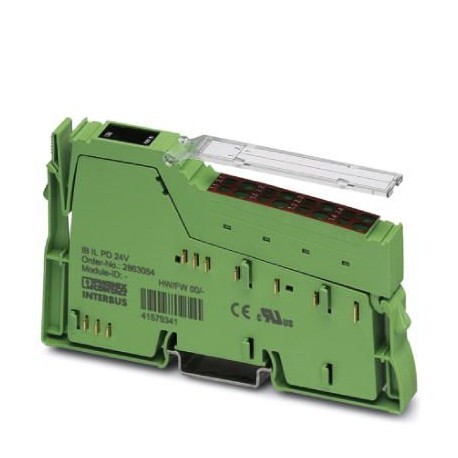

IB IL PD 24V-PAC 2862987 PHOENIX CONTACT Inline terminal
IB IL PD 24V-PAC
2862987
PHOENIX CONTACT
1 Pcs.
Inline terminal
Inline module for potential distribution (24 V), complete with accessories (connector and marking surface), 24 V supply voltage de-feeder from the segment circuit (US)
Automation > Accessories/spare parts for controls
I/O
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2862987 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 139 (C-6-2017) |
| GTIN | 4017918910105 |
| Weight per Piece (excluding packing) | 44.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Inline potentials
| Designation | Segment circuit supply (US) |
|---|---|
| Supply voltage | 24 V DC (via voltage jumper) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current consumption | max. 8 A |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027250302eCl@ss 4.127250281eCl@ss 5.027250304eCl@ss 5.127242600eCl@ss 6.027242600eCl@ss 7.027242610eCl@ss 8.027242610eCl@ss 9.027242610
| Feature Name | Feature Value |
|---|---|
| Type of mechanical accessory/spare part (EF005994) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
