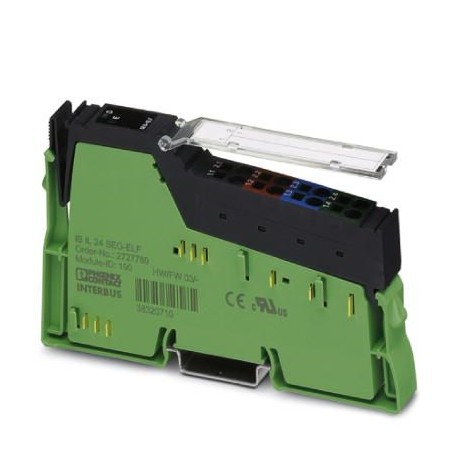

IB IL 24 SEG/F-D-PAC 2861904 PHOENIX CONTACT Inline terminal
IB IL 24 SEG/F-D-PAC
2861904
PHOENIX CONTACT
1 Pcs.
Inline terminal
Inline segment terminal block, complete with accessories (connector and marking surface), 24 V DC, with fuse and diagnostics
Automation > Fieldbus, decentr. periphery - power supply/segment module
I/O
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2861904 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 139 (C-6-2017) |
| GTIN | 4017918894603 |
| Weight per Piece (excluding packing) | 42.000 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Power supply
| Typical current consumption | 30 mA |
|---|---|
| I/O voltage | 24 V DC |
| I/O voltage range | 19.2 V DC ... 30 V DC |
| Max. current consumption | 4 A |
| Fuse | SI 5 x 20 6, 300 AT (in scope of delivery) |
Inline potentials
| Designation | Communications power (UL) |
|---|---|
| Supply voltage | 7.5 V DC (via voltage jumper) |
| Current consumption | max. 25 mA |
| Designation | Main circuit supply (UM) |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current consumption | max. 4 A (nominal value) |
| Designation | Segment circuit supply (US) |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Power supply unit | max. 4 A (nominal value) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027250315eCl@ss 4.127250304eCl@ss 5.027250304eCl@ss 5.127242600eCl@ss 6.027242600eCl@ss 7.027242610eCl@ss 8.027242610eCl@ss 9.027242610
| Feature Name | Feature Value |
|---|---|
| Supply voltage DC (EF007534) | 19.2 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| With optical interface (EF003028) | No |
| System accessory (EF004118) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Type of electric connection (EF003961) | Other |
| With potential separation (EF003272) | Yes |
| With power supply module (EF003993) | No |
| Suitable as segment module (EF004104) | Yes |
| Remote module (EF006653) | No |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Bus diagnosis possible (EF003989) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
