View larger
Images are for illustrative purposes only. Please refer to data sheet for details

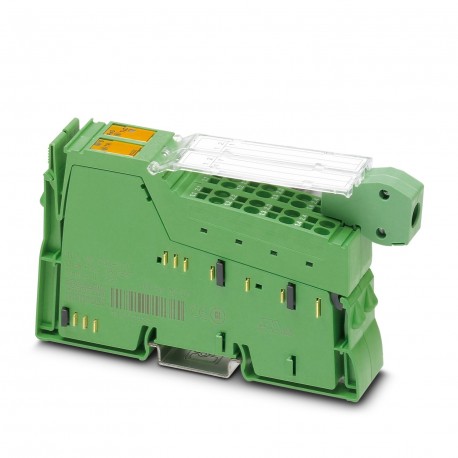

IB IL RS 232-2MBD-PAC 2862084 PHOENIX CONTACT Inline function terminal
IB IL RS 232-2MBD-PAC
2862084
PHOENIX CONTACT
1 Pcs.
Inline function terminal
RS-232 Inline functional terminal block, for serial data transmission, complete with accessories (connector and marking surface), 1 serial input and output channel in RS-232 execution
Inline, Communication terminal, interface RS-232: 1, Communication via PCP, transmission speed in the local bus: 2 Mbps, degree of protection: IP20, including Inline connectors and marking fields
Automation > Fieldbus, decentr. periphery - communication module
I/O
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Dimensions
| Dimensional drawing |  |
| Width | 24.4 mm |
| Height | 136.8 mm |
| Depth | 71.5 mm |
Notes
| Note on application | |
| Note on application | Only for industrial use |
Interfaces
| Inline local bus | |
| Connection method | Inline data jumper |
| Transmission speed | 2 Mbps |
| RS-232 | |
| Number of interfaces | 1 |
| Connection method | Spring-cage connection |
| Note on the connection method | Use shielded cables. |
| Transmission speed | 110 bps ... 38400 bps (can be parameterized) |
| Transmission physics | Copper |
| Data bits | 7 or 8 |
| Stop bits | 1 or 2 |
| Input buffer | 4 kByte |
| Output buffer | 1 kByte |
System properties
| Module | |
| ID code (dec.) | 220 |
| ID code (hex) | DC |
| Length code (hex) | 01 |
| Length code (dec) | 01 |
| Process data channel | 16 bit |
| Input address area | 2 Byte |
| Output address area | 2 Byte |
| Register length | 48 bit |
Product properties
| Product type | I/O component |
| Product family | Inline |
| Type | modular |
| Scope of delivery | including Inline connectors and marking fields |
| Special properties | Communication via PCP |
| Data management status | |
| Article revision | 05 |
Electrical properties
| Maximum power dissipation for nominal condition | 1.7 W |
| Potentials: Communications power (UL) | |
| Supply voltage | 7.5 V DC (via voltage jumper) |
| Current draw | max. 225 mA (all connections of the serial interface are short-circuited) |
| typ. 165 mA | |
Connection data
| Connection technology | |
| Connection name | Inline connector |
| Conductor connection | |
| Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
| Inline connector | |
| Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Degree of protection | IP20 |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
Standards and regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting
| Mounting type | DIN rail mounting |
| Feature Name | Feature Value |
|---|---|
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| IO link master (EF007298) | No |
| System accessory (EF004118) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| With potential separation (EF003272) | No |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | No |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 24.3 mm |
| Height (EF000040) | 136.04 mm |
| Depth (EF000049) | 70.51 mm |
