View larger
Images are for illustrative purposes only. Please refer to data sheet for details

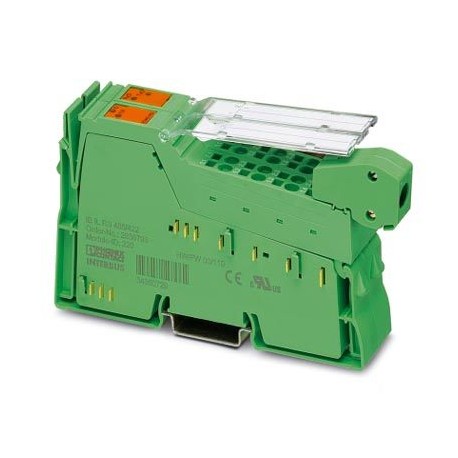

IB IL RS 485/422-2MBD-PAC 2862097 PHOENIX CONTACT Inline function terminal
IB IL RS 485/422-2MBD-PAC
2862097
PHOENIX CONTACT
1 Pcs.
Inline function terminal
RS 485/422 Inline functional terminal block, complete with accessories (connector and marking surface), 1 serial input and output channel
Automation > Fieldbus, decentr. periphery - communication module
I/O
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2862097 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 297 (AX-2009) |
| GTIN | 4017918974725 |
| Weight per Piece (excluding packing) | 135.000 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Connection data
| Designation | Inline connector |
|---|---|
| Connection method | Spring-cage connection |
| Conductor cross section solid min. | 0.08 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.08 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 28 |
| Conductor cross section AWG max. | 16 |
| Stripping length | 8 mm |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) |
| Permissible humidity (storage/transport) | 75 % ... 85 % (Slight temporary condensation may sometimes appear on the housing, e.g. when the terminal block is brought out of a vehicle into an enclosed room.) |
| Degree of protection | IP20 |
Interfaces
| Designation | Inline local bus |
|---|---|
| Connection method | Inline data jumper |
| Transmission speed | 2 Mbps |
| Interface | Either RS-485 half duplex or RS-422 full duplex (as alternative only) |
| Connection method | Spring-cage connection |
| Transmission physics | Copper |
| Data bits | 7 or 8 |
| Stop bits | 1 or 2 |
| Input buffer | 4 kByte |
| Output buffer | 1 kByte |
Inline potentials
| Designation | Communications power (UL) |
|---|---|
| Supply voltage | 7.5 V DC (via voltage jumper) |
| Current consumption | typ. 185 mA |
| max. 260 mA (all connections of the serial interface are short-circuited) |
Serial input/output channel
| Parity | Even, odd or no parity |
|---|---|
| Transmission type | Transparent mode, end-end mode, dual buffer mode, 3964R, XON/XOFF, Modbus RTU / ASCII |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027250304eCl@ss 4.127250203eCl@ss 5.027250304eCl@ss 5.127242600eCl@ss 6.027242600eCl@ss 7.027242608eCl@ss 8.027242608eCl@ss 9.027242608
| Feature Name | Feature Value |
|---|---|
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| IO link master (EF007298) | No |
| System accessory (EF004118) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| With potential separation (EF003272) | No |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | No |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 24.3 mm |
| Height (EF000040) | 136.04 mm |
| Depth (EF000049) | 70.51 mm |
