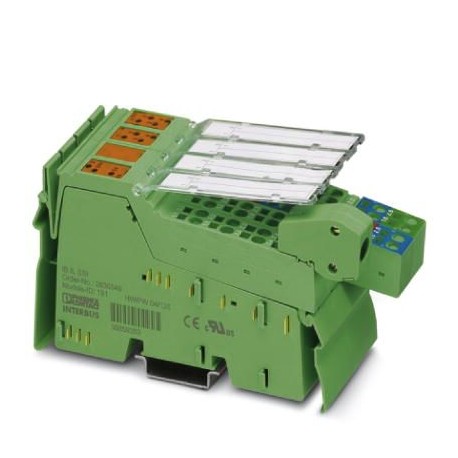

IB IL SSI-PAC 2861865 PHOENIX CONTACT Inline function terminal

IB IL SSI-PAC

2861865

PHOENIX CONTACT

1 Pcs.

Inline function terminal Inline-Erfassungsklemme für Positioniersteuerungs- und Positionsabsolutwertgeber, komplett mit Zubehör, 1 Absolutwertgeber-Eingang, 4 digital Eingänge 24 V DC,4 digital Ausgänge 24 V DC, 500 mA, 3-Leiter-Anschlusstechnik

Automation > Fieldbus, decentr. periphery - function-/technology module
I/O

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2861865
Packing unit1 pc
Catalog pagePage 184 (C-6-2017)
GTIN4017918894566
Weight per Piece (excluding packing)210.000 g
Custom tariff number85389091
Country of originDE (Germany)

Note

Utilization restriction1

Dimensions

Width48.8 mm
Height140.5 mm
Depth71.5 mm

Interfaces

InterfaceInline local bus
Connection methodInline data jumper

Power supply

I/O voltage24 V DC
I/O voltage range19.2 V DC ... 30 V DC
Encoder supply voltage5 V DC
24 V DC
Encoder supply current500 mA
500 mA
Drawing encoder supply voltageMain circuit UM

Electrical isolation

Test section5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min.
5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min.
7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min.
7.5 V supply (bus logics) / functional earth ground of encoder supply 500 V AC 50 Hz 1 min.
24 V supply (I/O) / functional earth ground 500 V AC 50 Hz 1 min.
24 V supply (I/O) / functional earth ground of encoder supply 500 V AC 50 Hz 1 min.
Functional earth ground of encoder supply / Functional earth ground 500 V AC 50 Hz 1 min.

Absolute encoder input

Number of inputs1
Adjustable resolution26 bit (maximum)
Transmission frequency400 kHz

Inputs

Number of inputs3
Connection technology3-wire
Input voltage24 V DC

Outputs

Number of outputs4
Connection technology3-conductor (shielded)
Output voltage24 V DC

General

Weight210 g
Number of plugs1

Inline potentials

DesignationCommunications power (UL)
Supply voltage7.5 V DC (via voltage jumper)
Current consumptionmax. 60 mA
DesignationMain circuit supply (UM)
Supply voltage24 V DC (via voltage jumper)
Supply voltage range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current consumptionmax. 1 A
DesignationSegment circuit supply (US)
Supply voltage24 V DC (via voltage jumper)
Current consumptionmax. 2 A

Standards and Regulations

Connection in acc. with standardCUL

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
