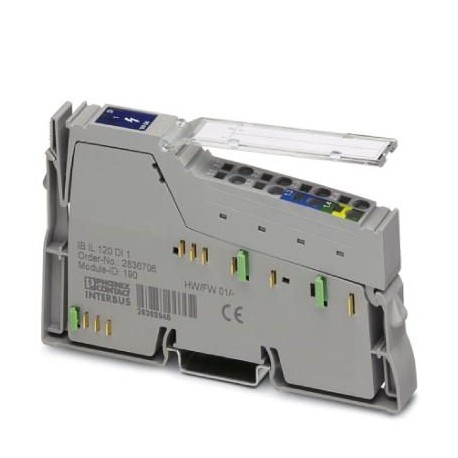

PHOENIX CONTACT IB IL 120 DI 1-PAC IB IL 120 DI 1-PAC 2861917 PHOENIX CONTACT Inline terminal View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IB IL 120 DI 1-PAC 2861917 PHOENIX CONTACT Inline terminal

IB IL 120 DI 1-PAC

2861917

PHOENIX CONTACT

1 Pcs.

Inline terminal Inline, Digital input module, Digital inputs: 1, 120 VAC, connection technology: 3 conductors, transmission speed on the local bus:500 kBit/s, protection index: IP20, incl. Inline connector and marking surface

Automation > Fieldbus, decentr. periphery - digital I/O module
I/O

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2861917
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 150 (C-6-2017)
GTIN4017918907464
Weight per Piece (excluding packing)39.000 g
Custom tariff number85389091
Country of originDE (Germany)

Note

Utilization restriction1

Dimensions

Dimensional drawing
Width12.2 mm
Height119.8 mm
Depth71.5 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 55 °C
Ambient temperature (storage/transport)-25 °C ... 85 °C
Permissible humidity (operation)75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.)
Permissible humidity (storage/transport)75 % ... 85 % (slight temporary condensation may sometimes appear on the housing)
Air pressure (operation)80 kPa ... 160 kPa (up to 2000 m above sea level)
Air pressure (storage/transport)70 kPa ... 106 kPa (up to 3000 m above sea level)
Degree of protectionIP20

General

Mounting typeDIN rail
Net weight39 g
Note on weight specificationswithout plug

Interfaces

DesignationInline local bus
No. of channels2
Connection methodInline data jumper
Transmission speed500 kbps

Power supply for module electronics

Supply voltage120 V AC
Supply voltage range108 V AC ... 135 V AC

Inline potentials

DesignationCommunications power (UL)
Supply voltage7.5 V DC (via voltage jumper)
Current consumptionmax. 30 mA
DesignationI/O supply
Supply voltage120 V AC (via voltage jumper)
Current consumption0.25 A

Digital inputs

Input nameDigital inputs
Description of the inputIEC 61131-2 type 1
Connection methodSpring-cage connection
Connection technology3-wire
Number of inputs1
Input voltage120 V AC
Input voltage range "0" signal0 V AC ... 40 V AC
Input voltage range "1" signal77 V AC ... 135 V AC

Electrical isolation

Test section5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min.
5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min.
7.5 V supply (bus logics) / I/O area 2500 V AC 50 Hz 1 min.
Routine test 1200 V AC 50 Hz 1 min.

Standards and Regulations

Connection in acc. with standardCUL
Protection classI, IEC 61140, EN 61140, VDE 0140-1

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications
