View larger
Images are for illustrative purposes only. Please refer to data sheet for details

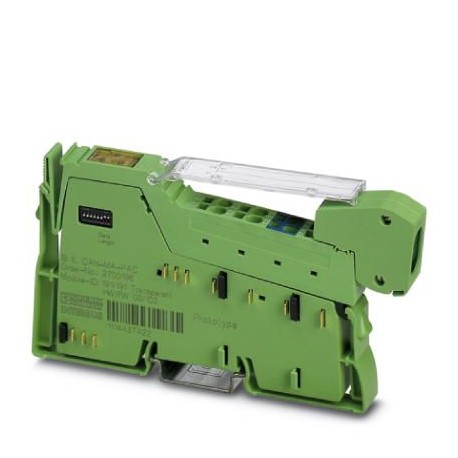

IB IL CAN-MA-PAC 2700196 PHOENIX CONTACT Inline function terminal
IB IL CAN-MA-PAC
2700196
PHOENIX CONTACT
1 Pcs.
Inline function terminal
Master CAN Inline, for the connection of a CAN bus system, complete with accessories (connector and marking surface)
Automation > Fieldbus, decentr. periphery - communication module
I/O
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2700196 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 176 (C-6-2017) |
| GTIN | 4046356497855 |
| Weight per Piece (excluding packing) | 75.000 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Connection data
| Designation | Inline connector |
|---|---|
| Connection method | Spring-cage connection |
| Conductor cross section solid min. | 0.08 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.08 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 28 |
| Conductor cross section AWG max. | 16 |
| Stripping length | 8 mm |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Degree of protection | IP20 |
Interfaces
| Designation | Axioline F local bus |
|---|---|
| Connection method | Bus base module |
| Transmission speed | 500 kbps |
| Interface | CAN bus |
| Connection method | Inline shield connector |
| No. of channels | 1 |
| Protocols supported | CAN |
| Interface | CAN bus |
Inline potentials
| Designation | Communications power (UL) |
|---|---|
| Supply voltage | 7.5 V DC (via voltage jumper) |
| Current consumption | typ. 110 mA |
| max. 115 mA | |
| Designation | Main circuit supply (UM) |
| Supply voltage | 24 V DC (via voltage jumper) |
| Current consumption | typ. 10 mA |
| max. 12 mA | |
| Power consumption | typ. 1.06 W |
Electrical isolation
| Test section | 24 V supply UM, bus, logic/CAN interface 500 V AC 50 Hz 1 min. |
|---|---|
| 24 V supply UM, bus, logic/functional earth ground 500 V AC 50 Hz 1 min. | |
| CAN interface/functional earth ground 500 V AC 50 Hz 1 min. |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027250304eCl@ss 4.127250304eCl@ss 5.027250304eCl@ss 5.127242600eCl@ss 6.027242600eCl@ss 7.027242608eCl@ss 8.027242608eCl@ss 9.027242608
| Feature Name | Feature Value |
|---|---|
| Supply voltage DC (EF007534) | 24 V |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| IO link master (EF007298) | No |
| System accessory (EF004118) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| With potential separation (EF003272) | Yes |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | No |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 12.15 mm |
| Height (EF000040) | 136.04 mm |
| Depth (EF000049) | 70.51 mm |
