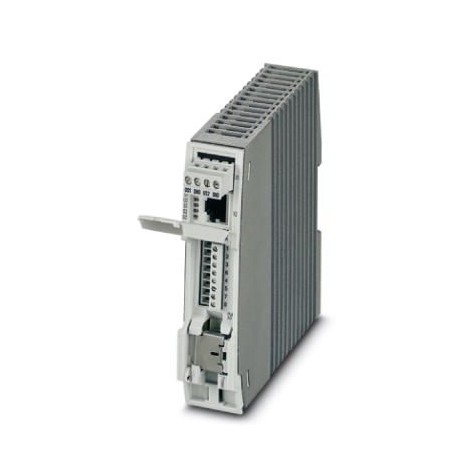

INJ 2111-T 2703013 PHOENIX CONTACT Injector

INJ 2111-T

2703013

PHOENIX CONTACT

1 Pcs.

Injector PoE injector, 60 W, RJ45 female connector on screw terminals, 10/100/1000 MBit/s, rail mounting, IP20, potential separation, protective contact with traction compensation, shielding current monitoring, surge protection

Automation > Patch panel copper (twisted pair)
Safety

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2703013
Packing unit1 pc
NoteMade to Order (non-returnable)
GTIN4055626463216
Weight per Piece (excluding packing)324.720 g
Custom tariff number85176200
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Dimensional drawing
Width30.2 mm
Height130 mm
Depth120 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 75 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Altitude5000 m (For restrictions see manufacturer's declaration)
Degree of protectionIP20 (Manufacturer's declaration)

General

Electrical isolationVCC // SCM + FE // PoE
Test voltage data interface/power supply1.5 kV AC (50 Hz, 1 min.)
Standards/regulationsIEC 61643-21
Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Mounting positionvertical
Net weight324.72 g
Housing materialPlastic
Colorgray
MTTF1797 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day))
733 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day))
283 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day))
ConformanceCE-compliant
UL, USAUL 60079-0 Ed. 6 / UL 60079-15 Ed. 4
UL, USA/CanadaClass I, Zone 2, AEx nA IIC T4, Ex nA IIC Gc X T4
Class I, Division 2, Groups A, B, C, D
UL, CanadaCSA 22.2 No. 60079-0 Ed. 3 / CSA 22.2 No. 60079-15:16

Power supply

Nominal supply voltage24 V DC
48 V DC
Supply voltage range18 V DC ... 57 V DC
Max. current consumption4.2 A
2.73 A (24 V DC)
1.34 A (48 V DC)
Power consumption≤ 75 W
Protective circuitReverse polarity protection
Conductor cross section flexible max.4.00 mm²
Conductor cross section flexible min.0.75 mm²
Conductor cross section solid max.4.00 mm²
Conductor cross section solid min.0.75 mm²
Conductor cross section AWG max.12
Conductor cross section AWG min.20

Serial interface

Interface 1Ethernet
Connection methodScrew terminal block
Transmission length100 m (including patch cables)
Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section AWG min.28
Conductor cross section AWG max.16
Torque0.22 Nm ... 0.25 Nm
Stripping length5 mm
Pin assignment1:1
Basic functionsPSE/Midspan, compliant with IEEE 802.3af, at
Serial transmission speed10/100/1000 Mbps
Output nominal voltage54 V DC (PoE)
Output power60 W
Maximum output power75 W
Interface 2Ethernet
Connection methodRJ45 CAT5e

Function

DesignationShield current monitoring
Switch-on threshold≥ 30 mA
Local diagnosticsYellow LED
Precision± 5 %
Response time3 s
Continuous shield current≤ 2 A
Power consumption270 mW (Shield current monitoring)

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Type of testVibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
Test result10 Hz ... 57 Hz, amplitude ±3.5 mm, 57 Hz ... 150 Hz, 5g
Type of testShock in acc. with EN 60068-2-27/IEC 60068-2-27
Test result25g for 11 ms, three shocks in each direction
Standards/regulationsEN 61000-4-2
Contact discharge± 6 kV (Test Level 3)
Indirect discharge± 6 kV
Standards/regulationsEN 61000-4-3
Frequency range80 MHz ... 3 GHz (Test Level 3)
Standards/regulationsEN 61000-4-4
CommentsCriterion B
Standards/regulationsEN 61000-4-5
Signal± 1 kV (Data line, asymmetrical)
± 2 kV (I/O cable on field side only, asymmetric)
Standards/regulationsEN 61000-6-4
EN 61000-4-6
Frequency range0.15 MHz ... 80 MHz
Standards/regulationsIEC 61643-21
IEC test classificationC2
ConformanceCE-compliant
UL, USAUL 60079-0 Ed. 6 / UL 60079-15 Ed. 4
UL, USA/CanadaClass I, Zone 2, AEx nA IIC T4, Ex nA IIC Gc X T4
Class I, Division 2, Groups A, B, C, D
UL, CanadaCSA 22.2 No. 60079-0 Ed. 3 / CSA 22.2 No. 60079-15:16
Noxious gas testISA-S71.04-1985 G3 Harsh Group A

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2703013 Data networking products (EC001128)
Feature Name Feature Value
Number of buses/couplings (EF004395) 1
Suitable for number of connectors (EF001579) 1
Type of connector (EF002935) Other
Screened (EF000881) Yes
Category (EF001619) 5
Number of height units (EF003561) 2
Height (EF000040) 130 mm
Width (EF000008) 30.2 mm
Depth (EF000049) 120 mm

Product Datasheet
