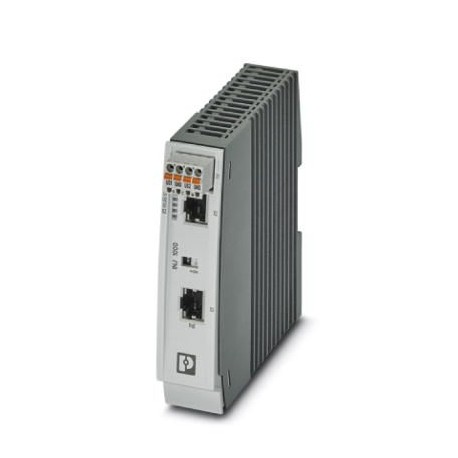

PHOENIX CONTACT INJ 1010-T INJ 1010-T 2703008 PHOENIX CONTACT Injector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

INJ 1010-T 2703008 PHOENIX CONTACT Injector

INJ 1010-T

2703008

PHOENIX CONTACT

1 Pcs.

Injector PoE injector, 60 W, two RJ45 female connectors, 10/100/1000 MBit/s, rail mounting, IP20, extended temperature range -40 °C ... 75 °C

Automation > Patch panel copper (twisted pair)
Safety

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2703008
Packing unit1 pc
GTIN4055626462967
Weight per Piece (excluding packing)380.600 g
Custom tariff number85176200
Country of originTW (Taiwan)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Dimensional drawing
Width30.2 mm
Height130 mm
Depth120 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 75 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Altitude5000 m (For restrictions see manufacturer's declaration)
2000 m (With UL approval)
Degree of protectionIP20 (Non-certificated by UL)

General

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Mounting positionvertical
Net weight380.6 g
Housing materialPlastic
Colorgray
ConformanceCE-compliant
UL, USA/CanadaClass I, Div. 2, Groups A, B, C, D, T4

Power supply

Nominal supply voltage24 V DC
48 V DC
Supply voltage range18 V DC ... 57 V DC (Ordinary locations)
24 V DC ... 48 V DC (Hazardous locations)
Max. current consumption4.2 A
2.73 A (24 V DC)
1.34 A (48 V DC)
Power consumption≤ 75 W
Protective circuitReverse polarity protection
Conductor cross section flexible max.4.00 mm²
Conductor cross section flexible min.0.75 mm²
Conductor cross section solid max.4.00 mm²
Conductor cross section solid min.0.75 mm²
Conductor cross section AWG max.12
Conductor cross section AWG min.20

Serial interface

Interface 1Ethernet
Connection methodRJ45 socket
Transmission length100 m (including patch cables)
Pin assignment1:1
Basic functionsPSE/Midspan, compliant with IEEE 802.3af, at
Serial transmission speed10/100/1000 Mbps
Output nominal voltage54 V DC (PoE)
Output power60 W
Interface 2Ethernet
Connection methodRJ45 CAT5e

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Type of testVibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
Test result10 Hz ... 57 Hz, amplitude ±3.5 mm, 57 Hz ... 150 Hz, 5g
Type of testShock in acc. with EN 60068-2-27/IEC 60068-2-27
Test result25g for 11 ms, three shocks in each direction
Standards/regulationsEN 61000-4-2
Contact discharge± 6 kV (Test Level 3)
Indirect discharge± 6 kV
Standards/regulationsEN 61000-4-3
Frequency range80 MHz ... 3 GHz (Test Level 3)
Standards/regulationsEN 61000-4-4
CommentsCriterion B
Standards/regulationsEN 61000-4-5
Signal± 1 kV (Data line, asymmetrical)
± 2 kV (I/O cable on field side only, asymmetric)
Standards/regulationsEN 61000-6-4
EN 61000-4-6
Frequency range0.15 MHz ... 80 MHz
ConformanceCE-compliant
UL, USA/CanadaClass I, Div. 2, Groups A, B, C, D, T4
Noxious gas testISA-S71.04-1985 G3 Harsh Group A

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 10;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2703008 Data networking products (EC001128)
Feature Name Feature Value
Number of buses/couplings (EF004395) 1
Suitable for number of connectors (EF001579) 1
Type of connector (EF002935) Other
Screened (EF000881) Yes
Category (EF001619) 5
Number of height units (EF003561) 2
RAL-number (EF000116) 7035
Height (EF000040) 130 mm
Width (EF000008) 30.2 mm
Depth (EF000049) 120 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
