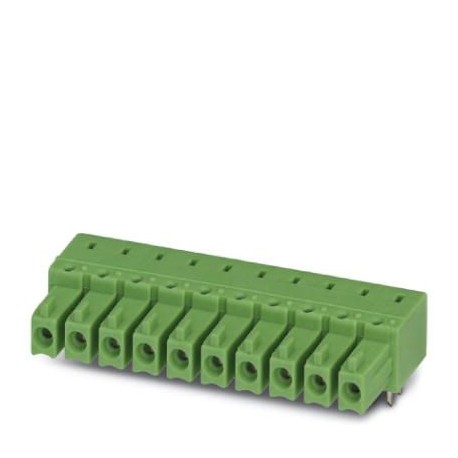

IMC 1,5/ 9-G-3,81 BK 1720181 PHOENIX CONTACT Feed-through header
IMC 1,5/ 9-G-3,81 BK
1720181
PHOENIX CONTACT
50 Pcs.
Feed-through header
Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Female, number of potentials: 9, number of rows: 1, number of poles: 9, number of connections: 9, family of articles: BMI 1.5/.. -G, pitch: 3.81 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.4 mm, number of solder pins per potential: 2, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1720181 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356112369 |
| Weight per Piece (excluding packing) | 3.050 g |
| Custom tariff number | 85366930 |
| Country of origin | PL (Poland) |
Dimensions
| Length [ l ] | 14.45 mm |
|---|---|
| Width | 35.08 mm |
| Pitch | 3.81 mm |
| Dimension a | 30.48 mm |
| Width [ w ] | 35.08 mm |
| Height [ h ] | 10.25 mm |
| Height | 6.85 mm |
| Length of the solder pin | 3.4 mm |
| Pin dimensions | 0.62 x 1.12 mm |
| Length | 14.45 mm |
General
| Range of articles | IMC 1,5/..-G |
|---|---|
| Rated voltage (III/3) | 160 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 8 A |
| Color | black |
| Number of positions | 9 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
