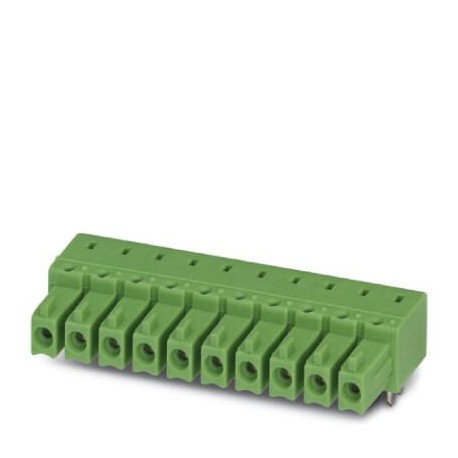

PHOENIX CONTACT IMC 1,5/10-G-3,81 BK AU IMC 1,5/10-G-3,81 BK AU 1725788 PHOENIX CONTACT Housing base printed circuit board, nominal current: 8 A, nu.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IMC 1,5/10-G-3,81 BK AU 1725788 PHOENIX CONTACT Housing base printed circuit board, nominal current: 8 A, nu..

IMC 1,5/10-G-3,81 BK AU

1725788

PHOENIX CONTACT

50 Pcs.

Housing base printed circuit board, nominal current: 8 A, number of poles: 10, pitch: 3,81 mm, color: black, surface contacts: Gold, assembly: wave Soldering Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Gold, contact type: Female, number of potentials: 10, number of rows: 1, number of poles: 10, number of connections: 10, family of articles: BMI 1.5/.. -G, pitch: 3.81 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.4 mm, number of solder pins per potential: 2, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Basic printed circuit board housing, rated current: 8 A, test voltage (III/2): 160 V, number of positions: 10, pitch: 3.81 mm, color: black, contact surface: Gold, mounting: Wave soldering

Business data

Order Code1725788
Packaging quantity (VPE)50 Items
GTIN4046356128407
Weight per unit (excluding packaging)2,177 GRM
Customs Duty Number85366930
Country of originPL (Poland)

Measurements

Measurements [ l ]14.45 mm
Width38.89 mm
Pitch Measurement3.81 mm
Measure to34.29 mm
Width [w]38.89 mm
Height [ h ]10.25 mm
Height6.85 mm
Length of Weld Pin3.4 mm
Pin Measurements1.12 mm
Length14.45 mm

General

Product FamilyBMI 1.5/.. -G
Sizing Stress (III/3)160 V
Standard-compliant connectionEN-VDE
Rated Current IN8 A
ColorBlack
Number of poles10

Rules and provisions

Standard-compliant connectionEN-VDE
CUL

Environmental Product Compliance

China RoHSPeriod for intended use: unlimited = EFUP-e
No hazardous substances above the limit values

Classifications

eCl@ss

eCl@ss 4.0272607xx
eCl@ss 4.127260701
eCl@ss 5.027260701
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002637
ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637

UNSPSC

UNSPSC 6.0130211810
UNSPSC 7.090139121409
UNSPSC 1139121409
UNSPSC 12.0139121409
UNSPSC 13.239121409

ETIM for 1725788 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Bus
Number of poles (EF001391) 10
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 3.81 mm
Modular spacing connections (EF006827) 3.81 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Gold
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 3.4 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
