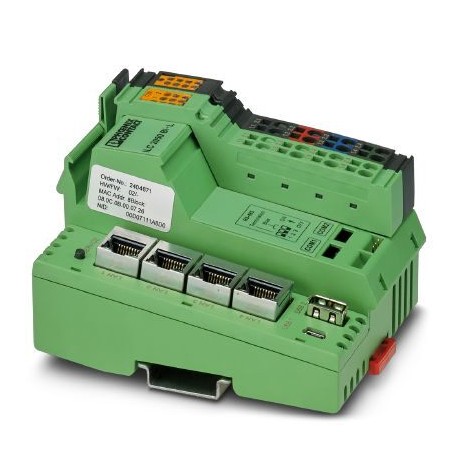

PHOENIX CONTACT ILC 2050 BI-L ILC 2050 BI-L 2404671 PHOENIX CONTACT The modular Inline controller for automation applications in buildings.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ILC 2050 BI-L 2404671 PHOENIX CONTACT The modular Inline controller for automation applications in buildings..

ILC 2050 BI-L

2404671

PHOENIX CONTACT

1 Pcs.

The modular Inline controller for automation applications in buildings, infrastructure, and energy for connection with standard automation technology with the Internet of Things (IoT). The controller makes it possible to implement complex systems efficiently. Modular inline controller for automation applications in building technology, infrastructure and energy technology. It has two logically separated IP address interfaces with 2 integrated Fast Ethernet ports respectively. Configurable assignment of Ethernet ports for use of the Spanning Tree protocol, Daisy Chain, and redundant ring structures for optimal availability. 4 LAN interfaces, 2 USB interfaces and 2 RS-485 interfaces have been integrated. Allows direct connection of LonMark TP/FT-10 networks. Data point connections can be expanded with up to 63 inline I/O modules.

Automation > PLC CPU-module
Control Systems (CST)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2404671
Packing unit1 pc
GTIN4055626933030
Weight per Piece (excluding packing)320.000 g
Custom tariff number85371091
Country of originDE (Germany)

Dimensions

Width80 mm
Height119.8 mm
Depth71.5 mm
Back to top

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 55 °C
Ambient temperature (storage/transport)-25 °C ... 85 °C
Permissible humidity (operation)0 % ... 75 % (according to DIN EN 61131-2, non-condensing, no ice formation)
Air pressure (operation)70 hPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)70 kPa ... 106 kPa (up to 3000 m above sea level)
Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37Sulfur dioxide (SO2) 10 ±0.3 ppm (test duration: 10 days), hydrogen sulfide (H2S) 1 ±0.3 ppm (test duration: 4 days), both at 25°C and with 75% humidity
Back to top

Control system

Engineering toolNiagara 4
WorkPlace
Programming languages supportedNiagara Framework®
Back to top

Mechanical design

Weight230 g
Diagnostics displayNo
Controller redundancyNo
Safety functionNo
Back to top

Data interfaces

InterfaceEthernet
Number4
Connection methodRJ45 socket, shielded
Transmission speed10/100 Mbps
InterfaceRS-485
Number2
Connection methodSpring-cage connection
Transmission speedmax. 200 kbps
InterfaceUSB 1.0/USB 2.0
Number1
Connection methodUSB type A, socket
InterfaceUSB OTG
Number1
Connection methodMini-USB
InterfacemicroSD
Number1 (Top)
Connection methodmicroSD slot
Back to top

Power supply

Typical current consumption≤ 170 mA (at nominal voltage without local bus device)
Max. current consumption≤ 1.5 A
Supply voltage24 V DC
Supply voltage range19.2 V DC ... 30 V DC
Back to top

Fieldbus function

Amount of process datamax. 4096 Bit (INTERBUS)
Number of supported devicesmax. 63
Number of local bus devices that can be connectedmax. 63 (observe current consumption)
Number of devices with parameter channelmax. 16 (PCP devices are tolerated – however, PCP is not actively supported)
Back to top

General data

ProcessorArm®Cortex®-A8 1000 MHz
Operating systemLinux
RAM512 Mbyte DDR3 SDRAM
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027250203
eCl@ss 4.127240601
eCl@ss 5.027242215
eCl@ss 5.127242700
eCl@ss 6.027242200
eCl@ss 7.027242207
eCl@ss 8.027242207
eCl@ss 9.027242207
Back to top

ETIM

ETIM 2.0EC000236
ETIM 3.0EC000236
ETIM 4.0EC000236
ETIM 5.0EC000236
ETIM 6.0EC000236
ETIM 7.0EC000236
Back to top

UNSPSC

UNSPSC 6.0143172015
UNSPSC 7.090143201404
UNSPSC 1143172018
UNSPSC 12.0143201404
UNSPSC 13.243201404
UNSPSC 18.039122114
UNSPSC 19.039122114
UNSPSC 20.039122114
UNSPSC 21.039122114
Back to top

ETIM for 2404671 PLC's (EC000236)
Feature Name Feature Value
Supply voltage DC (EF007534) 19.2 V
Voltage type (supply voltage) (EF002991) DC
Model (EF000010) Modular
Number of HW-interfaces industrial Ethernet (EF003020) 4
Number of interfaces PROFINET (EF006932) 0
Number of HW-interfaces RS-232 (EF003021) 0
Number of HW-interfaces RS-422 (EF003022) 0
Number of HW-interfaces RS-485 (EF003023) 2
Number of HW-interfaces USB (EF003025) 1
Number of HW-interfaces parallel (EF003026) 0
Number of HW-interfaces wireless (EF006933) 0
Number of HW-interfaces other (EF003027) 1
Number of analogue outputs (EF001995) 0
Number of analogue inputs (EF001994) 0
Number of digital inputs (EF001992) 0
Number of digital outputs (EF001993) 0
Supporting protocol for TCP/IP (EF003050) No
Supporting protocol for PROFIBUS (EF003052) No
Supporting protocol for CAN (EF003053) No
Supporting protocol for EtherCAT (EF017564) No
Supporting protocol for INTERBUS (EF003054) No
Supporting protocol for ASI (EF003051) No
Supporting protocol for KNX (EF003055) No
Supporting protocol for Modbus (EF003057) Yes
Supporting protocol for Data-Highway (EF003058) No
Supporting protocol for DeviceNet (EF003059) No
Supporting protocol for SUCONET (EF003060) No
Supporting protocol for LON (EF003017) No
Supporting protocol for PROFINET IO (EF007525) No
Supporting protocol for PROFINET CBA (EF007524) No
Supporting protocol for SERCOS (EF006657) No
Supporting protocol for Foundation Fieldbus (EF007522) No
Supporting protocol for EtherNet/IP (EF007521) No
Supporting protocol for AS-Interface Safety at Work (EF007519) No
Supporting protocol for DeviceNet Safety (EF007520) No
Supporting protocol for INTERBUS-Safety (EF006662) No
Supporting protocol for PROFIsafe (EF007526) No
Supporting protocol for SafetyBUS p (EF007527) No
Supporting protocol for other bus systems (EF003062) No
IO link master (EF007298) No
System accessory (EF004118) Yes
Memory size (EF002997) 1048576 kByte
Suitable for rail mounting (EF003972) Yes
Wall mounting/direct mounting (EF007020) No
Front built-in possible (EF007016) No
Rack-assembly possible (EF007018) No
SIL according to IEC 61508 (EF009889) None
Performance level according to EN ISO 13849-1 (EF007399) None
Appendant operation agent (Ex ia) (EF004141) No
Appendant operation agent (Ex ib) (EF004142) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 80.096003 mm
Height (EF000040) 120.557026 mm
Depth (EF000049) 70.030346 mm

Product Datasheet
