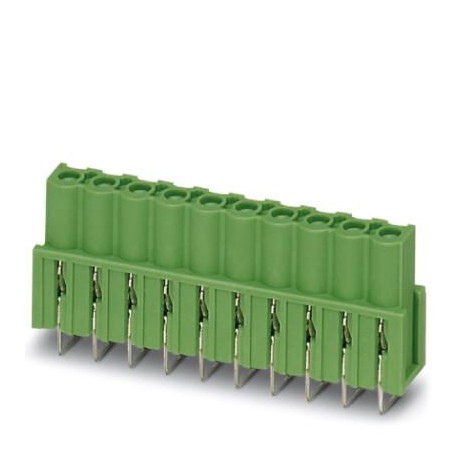

PHOENIX CONTACT ICV 2,5/ 3-G-5,08 GY7035 ICV 2,5/ 3-G-5,08 GY7035 1030265 PHOENIX CONTACT Printed-circuit board connector ICV 2,5/ 3-G-5,08 GY7035 10.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ICV 2,5/ 3-G-5,08 GY7035 1030265 PHOENIX CONTACT Printed-circuit board connector ICV 2,5/ 3-G-5,08 GY7035 10..

ICV 2,5/ 3-G-5,08 GY7035

1030265

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector - ICV 2,5/ 3-G-5,08 GY7035 - 1030265 Printed circuit board base housing, nominal section: 2.5 mm², color: light gray, nominal current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Tin, contact type: Connection female, Number of potentials: 3, Number of rows: 1, Number of poles per row: 3, number of connections: 3, article family: ICV 2.5/.. -G, pitch: 5.08 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, Stecksystem: CLASSIC COMBICON, Locking: without, packaging type: boxed PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, nominal cross section: 2.5 mm², number of positions: 3, pitch: 5.08 mm, color: light gray, contact surface: Tin, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1030265
Packing unit1
GTIN4055626532493
Custom tariff number85366930
