View larger
Images are for illustrative purposes only. Please refer to data sheet for details

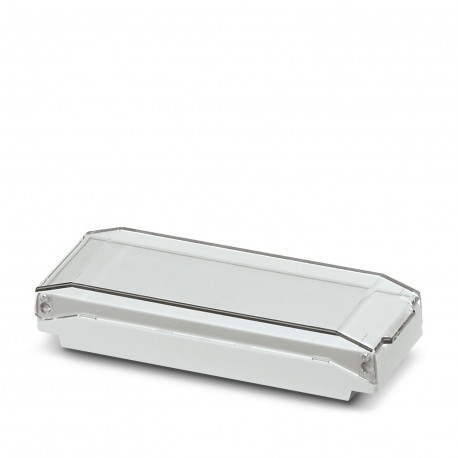

ICS25-TL77X12-7035 1019570 PHOENIX CONTACT Upper part of housing
ICS25-TL77X12-7035
1019570
PHOENIX CONTACT
10 Pcs.
Upper part of housing
Rail box, Top, with transparent flip-top lid, width: 25 mm, height: 78.5 mm, depth: 14.35 mm, colour: light grey (7035)
DIN rail box, Top, with transparent hinged lid, width: 25 mm, height: 78.5 mm, depth: 14.35 mm, colour: light grey (Similar RAL 7035)
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1019570 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| GTIN | 4055626506746 |
| Weight per Piece (excluding packing) | 14.330 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Item properties
| Brief article description | Upper part of housing |
|---|---|
| Type | ICS25-TL77X12-7035 |
| Order No. | 1019570 |
| Housing type | Component housing |
| Type | Upper part |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 100 °C (observe derating) |
Thermostability (Ball Thrust Test)
| Specification | IEC 60695-10-2:2014-02 |
|---|---|
| Temperature | 125 °C |
| Test duration | 1 h |
| Force | 20 |
Test for assessing the risk of fire (glow wire)
| Specification | IEC 60695-2-11:2014-02 |
|---|---|
| Temperature | 850 °C |
| Time of exposure | 30 s |
Test for substances that would hinder coating with paint or varnish
| Specification | VW PV 3.10.7:2005-02 |
|---|
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Width (EF000008) | 25 mm |
| Height (EF000040) | 78.5 mm |
| Depth (EF000049) | 14.35 mm |
