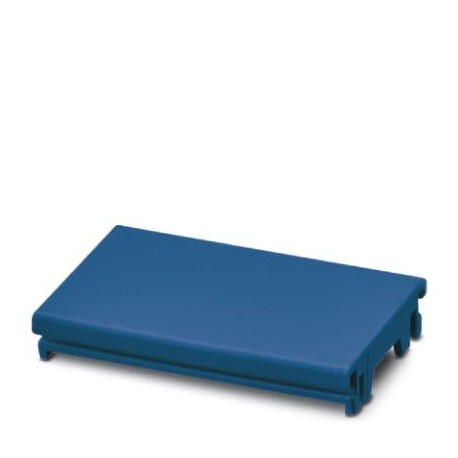

ICS25-F45S-5015 1071767 PHOENIX CONTACT DIN rail housing, ICS filler, closed, width: 25 mm, height: 7 mm, de..
ICS25-F45S-5015
1071767
PHOENIX CONTACT
10 Pcs.
DIN rail housing, ICS filler, closed, width: 25 mm, height: 7 mm, depth: 45 mm, color: blue (5015)
Rail box, ICS plug, closed, width: 25 mm, height: 7.25 mm, depth: 44.9 mm, colour: blue (Similar RAL 5015)
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Item properties
| Brief article description | Connection plate |
|---|---|
| Type | ICS25-F45S-5015 |
| Order No. | 1071767 |
| Housing type | DIN rail housing |
| Housing series | ICS |
| Type | ICS filler, closed |
| Mounting type | Slot |
| Ventilation openings present | no |
Material data
| Color (RAL) | blue (5015) |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Housing material | Polyamide |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Relative humidity (storage/transport) | 80 % |
General information
| Type of note | Assembly instruction: |
|---|---|
| Note | Refer to the data sheet for the range in the download area. |
Packaging information
| Pieces per package | 10 |
|---|---|
| Denomination packing units | Pcs. |
| Outer packaging type | Resealable bag |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Blue |
| RAL-number (EF000116) | 5015 |
