View larger
Images are for illustrative purposes only. Please refer to data sheet for details

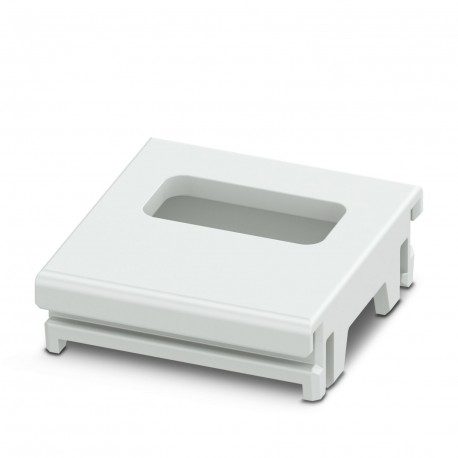

ICS25-F22U-7035 1053046 PHOENIX CONTACT Connection plate ICS25-F22U-7035 1053046
ICS25-F22U-7035
1053046
PHOENIX CONTACT
50 Pcs.
Connection plate - ICS25-F22U-7035 - 1053046
Rail box, ICS plug, with USB open section, width: 25 mm, height: 7.25 mm, depth: 22.4 mm, colour: light grey (7035)
DIN rail enclosure, ICS cap, with USB open section, width: 25 mm, height: 7.25 mm, depth: 22.4 mm, colour: light grey (Similar RAL 7035)
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲ICS-Filler, with USB function cutout, width: 25 mm, color: light gray (7035)
Key Commercial Data
| Orderkey | 1053046 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 50 pc |
| GTIN | 4055626678313 |
| Weight per Piece (excluding packing) | 1.300 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Item properties
| Brief article description | Connection plate |
|---|---|
| Type | ICS25-F22U-7035 |
| Order No. | 1053046 |
| Housing type | ICS-Filler |
| Type | with USB function cutout |
Dimensions
| Width [ w ] | 25 mm |
|---|---|
| Height [ h ] | 7 mm |
| Depth [ d ] | 22.5 mm |
Material data
| Color (RAL) | light gray (7035) |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Housing material | PA 6.6 |
Packaging information
| Pieces per package | 10 |
|---|---|
| Denomination packing units | Pcs. |
Standards and regulations
| Flammability rating according to UL 94 | V0 |
|---|
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 5.1 | 27180506 |
|---|---|
| eCl@ss 6.0 | 27180800 |
| eCl@ss 7.0 | 27182702 |
| eCl@ss 8.0 | 27182702 |
| eCl@ss 9.0 | 27182702 |
ETIM
| ETIM 5.0 | EC001031 |
|---|---|
| ETIM 6.0 | EC001031 |
| ETIM 7.0 | EC001031 |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
