ICS25-B100X98-V-7035 2203881 PHOENIX CONTACT Mounting base housing

ICS25-B100X98-V-7035

2203881

PHOENIX CONTACT

10 Pcs.

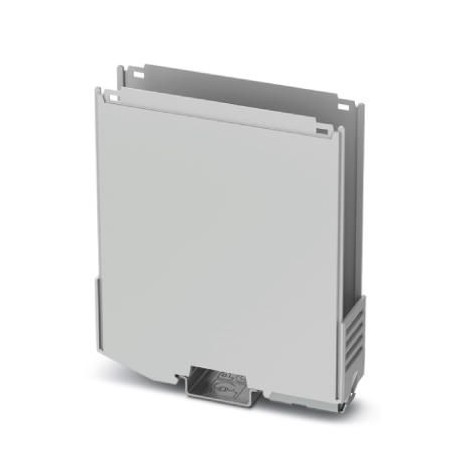

Mounting base housing Rail housing, Lower housing with metal pin, Level 1: with ventilation slits, width: 25 mm, height: 100 mm, depth: 108.35 mm, colour: light grey (7035), transverse bridge: Rail bus connector (optional), number of transverse connector poles: 8

Automation > Extruded profile modular housing
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2203881
Packing unit10 pc
Minimum order quantity10 pc
GTIN4055626465562
Weight per Piece (excluding packing)22.220 g
Custom tariff number85389099
Country of originDE (Germany)

Item properties

Brief article descriptionMounting base housing
TypeICS25-B100X98-V-7035
Order No.2203881
Housing type
TypeLower part
Ventilation openings presentyes

Dimensions

Width [ w ]25 mm
Height [ h ]100 mm
Depth from top edge of DIN rail [ d ]98 mm
Dimensions25 mm x 100 mm x 110 mm (Lower housing part with upper housing part)

Material data

Color (similar to RAL)light gray (7035)
Flammability rating according to UL 94V0
Housing materialPA 6.6

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C ... 100 °C (observe derating)

PCB data

Number of PCB holders2

Power dissipation, single housing at 20 °C

Ambient temperature20 °C
Reduction factor1
Mounting positionvertical
Power dissipation17 W

Power dissipation, single housing at 30 °C

Ambient temperature40 °C
Reduction factor0.67
Mounting positionvertical

Power dissipation, single housing at 40 °C

Ambient temperature60 °C
Reduction factor0.41
Mounting positionvertical

Power dissipation, single housing at 50 °C

Ambient temperature80 °C
Reduction factor0.22
Mounting positionvertical

Mechanical strength/tumbling barrel

Height of fall50 cm
Number of drop cycles50

Vibration test

SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.15 mm (10 - 58.1 Hz)
Acceleration2g (58.1 - 150 Hz)
Test duration per axis2.5 h
Test directionsX-, Y- and Z-axis

Shock

SpecificationIEC 60068-2-27:2008-02
Pulse shapeSemi-sinusoidal
Acceleration15g
Shock duration11 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)

Thermostability (Ball Thrust Test)

SpecificationIEC 60695-10-2:2014-02
Temperature125 °C
Test duration1 h
Force20

Test for assessing the risk of fire (glow wire)

SpecificationIEC 60695-2-11:2014-02
Temperature850 °C
Time of exposure30 s

Packaging information

Pieces per package10
Denomination packing unitsPcs.

Standards and regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 2203881 Low-voltage industrial controls and switchgear (EC002779)
Feature Name Feature Value
Type of enclosure (EF003086) Closed
Housing connectable (EF003088) No
Material (EF002169) Other
Surface finishing (EF006569) Other
Colour (EF000007) Grey
RAL-number (EF000116) 7035
Width (EF000008) 25 mm
Height (EF000040) 100 mm
Depth (EF000049) 108.35 mm
