View larger
Images are for illustrative purposes only. Please refer to data sheet for details

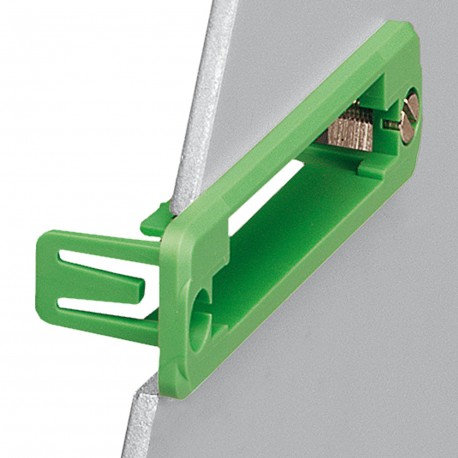

IC-DFR 3 BK 1831824 PHOENIX CONTACT Accessories
IC-DFR 3 BK
1831824
PHOENIX CONTACT
50 Pcs.
Accessories
Recessed frame, nominal cross-section: 2.5 mm², colour: black, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, article family: IC-DFR, pitch: 5.08 mm, packaging type: boxed
Panel-mount frame, nominal cross section: 2.5 mm2, color: black, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: IC-DFR, pitch: 5.08 mm, type of packaging: packed in cardboard
Connectors > Accessories/spare parts for industrial connectors
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Panel-mount frame |
| Product family | IC-DFR |
| Product line | COMBICON Connectors Special |
| Number of positions | 3 |
| Pitch | 5.08 mm |
| Number of connections | 3 |
| Number of rows | 1 |
| Number of potentials | 3 |
| Data management status | |
| Article revision | 00 |
Dimensions
| Dimensional drawing |  |
| Pitch | 5.08 mm |
Material specifications
| Material data - housing | |
| Color (Housing) | black (9005) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Connector
| Connection 1 | |
| Insulating material | PA |
| CTI according to IEC 60112 | 600 |
Packaging specifications
| Type of packaging | packed in cardboard |
