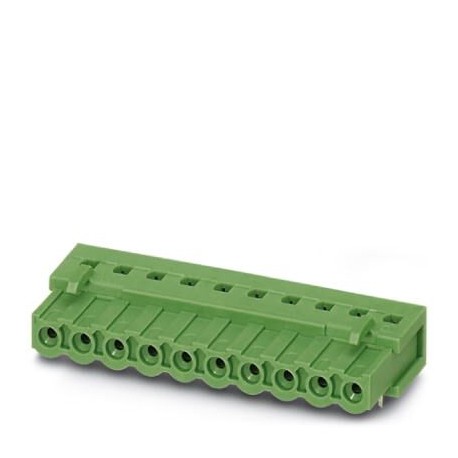

PHOENIX CONTACT IC 2,5/14-G-5,08 O.R. IC 2,5/14-G-5,08 O.R. 1811488 PHOENIX CONTACT PCB headers, nominal current: 12 A, rated voltage (III/2): 320.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IC 2,5/14-G-5,08 O.R. 1811488 PHOENIX CONTACT PCB headers, nominal current: 12 A, rated voltage (III/2): 320..

IC 2,5/14-G-5,08 O.R.

1811488

PHOENIX CONTACT

50 Pcs.

PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 14, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering Printed circuit board base housing, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 14, number of rows: 1, number of poles: 14, number of connections: 14, family of articles: IC 2.5/.. -G, pitch: 5.08 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 2, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 14, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering

Key Commercial Data

Orderkey1811488
Packing unit1
GTIN4046356747202
Custom tariff number85366930

Dimensions

Length [ l ]18.9 mm
Width73.12 mm
Pitch5.08 mm
Dimension a66.04 mm
Width [ w ]73.12 mm
Height [ h ]13.7 mm
Height10.2 mm
Length of the solder pin3.5 mm
Pin dimensions0.48 x 1.14 mm
Length18.9 mm

General

Range of articlesIC 2,5/..-G
Rated voltage (III/3)320 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Colorgreen
Number of positions14

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 4.0272607xx
eCl@ss 4.127260701
eCl@ss 5.027260701
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002637
ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637

UNSPSC

UNSPSC 6.0130211810
UNSPSC 7.090139121409
UNSPSC 1139121409
UNSPSC 12.0139121409
UNSPSC 13.239121409
