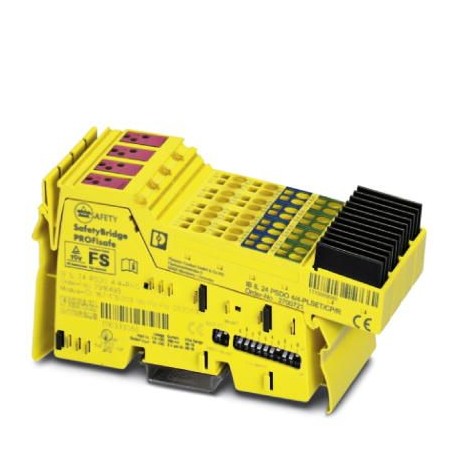

IB IL 24 PSDO 4/4-R-PAC 2700804 PHOENIX CONTACT Safety module
IB IL 24 PSDO 4/4-R-PAC
2700804
PHOENIX CONTACT
1 Pcs.
Safety module
Safety input/output components, digital output module with 4 safe positive and negative connection outputs; for the SafetyBridge, PROFIsafe and INTERBUS-Safety system; to SIL 3, Cat. 4/PL e, SIL 3, spring-loaded plug-in connection with discharge connectors
Automation > Fieldbus, decentr. periphery - digital I/O module
Safety
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2700804 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356657402 |
| Weight per Piece (excluding packing) | 421.900 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) |
| Permissible humidity (storage/transport) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) |
| Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
| Degree of protection | IP20 |
Interfaces
| Designation | Inline local bus |
|---|---|
| No. of channels | 2 |
| Connection method | Inline data jumper |
| Transmission speed | 500 kbps / 2 Mbps |
Digital outputs
| Output name | Digital outputs |
|---|---|
| Output description | +/- switching |
| Connection method | Spring-cage connection |
| Connection technology | 2, 3, 4-wire |
| Number of outputs | 4 (for two-channel assignment, +/- switching) |
| 4 | |
| Type of protection | Overload protection, short-circuit protection of outputs |
| Output voltage | 24 V DC (US- 1 V) |
| Nominal output voltage | 24 V DC |
| Output current | max. 3 A (Total current of all outputs) |
| Maximum output current per channel | 2 A |
| Maximum output current per module | 3 A (See technical data) |
Power supply for module electronics
| Supply voltage | 24 V DC (via voltage jumper) |
|---|---|
| Supply voltage range | 19.2 V DC ... 30 V DC |
General
| Mounting type | DIN rail |
|---|---|
| Net weight | 421.9 g |
| Note on weight specifications | with connectors |
| Diagnostics messages | Short-circuit / overload of the digital outputs Error message in diagnostics code (bus) and display by means of the LED on the motor |
Inline potentials
| Designation | Communications power (UL) |
|---|---|
| Supply voltage | 7.5 V DC (see safety data) |
| Current consumption | max. 230 mA |
| Designation | Main circuit supply (UM) |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current consumption | typ. 30 mA (all outputs set including actuator current) |
| max. 3.03 A | |
| Designation | Segment circuit supply (US) |
| Supply voltage | 24 V |
Safety-related characteristic data
| Designation | IEC 61508 - High demand |
|---|---|
| Safety Integrity Level (SIL) | max. 3 (two channel; dependent in parameterization and wiring) |
| Designation | IEC 61508 - Low demand |
| Safety Integrity Level (SIL) | max. 3 (two channel; dependent in parameterization and wiring) |
| Designation | EN ISO 13849 |
| Performance level (PL) | max. e (two channel; dependent in parameterization and wiring) |
| Category | max. 4 (two channel; dependent in parameterization and wiring) |
| Designation | EN 62061 |
| Safety Integrity Level Claim Limit (SIL CL) | max. 3 (two channel; dependent in parameterization and wiring) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027240404eCl@ss 4.127240404eCl@ss 5.027242204eCl@ss 5.127242600eCl@ss 6.027242600eCl@ss 7.027242604eCl@ss 8.027242604eCl@ss 9.027242604
| Feature Name | Feature Value |
|---|---|
| Supply voltage DC (EF007534) | 19.2 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Number of digital inputs (EF001992) | 0 |
| Number of digital outputs (EF001993) | 4 |
| Digital inputs configurable (EF008516) | No |
| Digital outputs configurable (EF008520) | No |
| Type of voltage (input voltage) (EF003033) | DC |
| Type of digital output (EF003601) | Other |
| Output current (EF003202) | 2 A |
| Permitted voltage at output (EF007553) | 24 V |
| Short-circuit protection, outputs available (EF003203) | Yes |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces other (EF003027) | 2 |
| With optical interface (EF003028) | No |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for INTERBUS (EF003054) | Yes |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard UMTS (EF008525) | No |
| IO link master (EF007298) | No |
| System accessory (EF004118) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Time delay at signal change (EF002382) | 0 ms |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | Yes |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 48.6 mm |
| Height (EF000040) | 141.32 mm |
| Depth (EF000049) | 70.58 mm |
