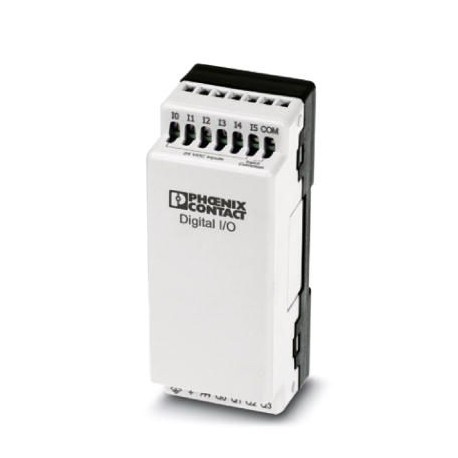

NLC-IO-03I-04QRD-05A 2701328 PHOENIX CONTACT I/O extension module
NLC-IO-03I-04QRD-05A
2701328
PHOENIX CONTACT
1 Pcs.
I/O extension module
I/O expansion module for use with the 24VDC Nanoline base unit. Equipped with 3 digital inputs and 4 output channels per 5 A relay. At most, three I/O expansion modules can be connected to the base unit.
Automation > Logic module
Control Systems (CST)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2701328 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 465 (C-8-2015) |
| GTIN | 4046356325493 |
| Weight per Piece (excluding packing) | 190.500 g |
| Custom tariff number | 85389099 |
| Country of origin | IN (India) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Digital inputs
| Input name | Digital inputs |
|---|---|
| Description of the input | PNP/NPN |
| Connection method | Screw connection |
| Number of inputs | 3 |
| Typical response time | 60 µs (on) |
| 70 µs (OFF) |
Digital outputs
| Output name | Relay output |
|---|---|
| Output description | Relay output |
| Connection method | Screw connection |
| Number of outputs | 4 |
| Maximum output current per channel | 5 A |
| Maximum output current per module / terminal block | 20 A |
| Maximum output current per module | 20 A |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250315eCl@ss 4.127250315eCl@ss 5.027242216eCl@ss 5.127242700eCl@ss 6.027242200eCl@ss 7.027242216eCl@ss 8.027242216eCl@ss 9.027242216
