View larger
Images are for illustrative purposes only. Please refer to data sheet for details

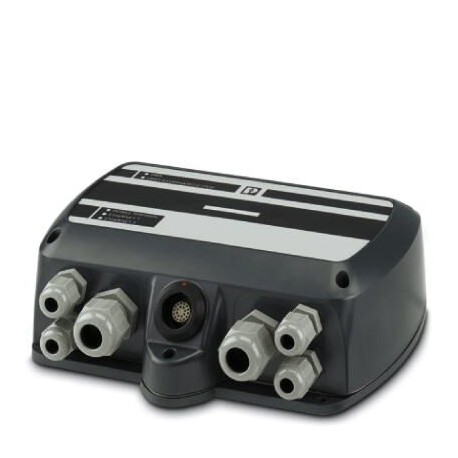

HTP10 1000 CB 1047323 PHOENIX CONTACT Junction box for panel mobile HTP10 1000
HTP10 1000 CB
1047323
PHOENIX CONTACT
1 Pcs.
Junction box for panel mobile HTP10 1000
Junction box for HTP10 1000 mobile panel
Automation > Accessories/spare parts for controls
Control Systems (CST)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1047323 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 487 (C-6-2019) |
| GTIN | 4055626647685 |
| Custom tariff number | 85389099 |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| Ambient temperature (operation) | 0 °C ... 50 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
General
| Weight | 500 g |
|---|---|
| Mounting type | Wall mounting, optionally on mounting plate |
| Supply voltage | 24 V DC (PELV/SELV) |
| Supply voltage range | 19.2 V DC ... 30 V DC (according to DIN EN 61131-2) |
| Category according to EN 13849-1 | 4 |
| Performance level in accordance with EN 13849-1 | e |
| SIL in accordance with IEC 61508 | 3 |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 10; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 5.1 | 27249201 |
|---|---|
| eCl@ss 6.0 | 27249203 |
| eCl@ss 7.0 | 27249203 |
| eCl@ss 8.0 | 27339290 |
| eCl@ss 9.0 | 27330292 |
