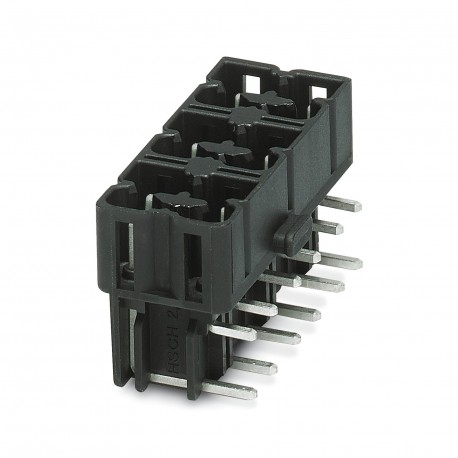

PHOENIX CONTACT HSCH 2,5-3U-TTTTTT 9005 HSCH 2,5-3U-TTTTTT 9005 1126768 PHOENIX CONTACT PCB headers, color: black, Please observe the derating curve.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HSCH 2,5-3U-TTTTTT 9005 1126768 PHOENIX CONTACT PCB headers, color: black, Please observe the derating curve..

HSCH 2,5-3U-TTTTTT 9005

1126768

PHOENIX CONTACT

1 Pcs.


Connectors > Printed circuit board connector
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
PCB headers, color: black, Please observe the derating curve of the item

Printed circuit board base case, nominal section: 2.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 6, number of rows: 2, number of poles: 6, number of connections: 6, family of articles: HSCH 2.5/.. -G, pitch: 5 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.8 mm, number of solder pins per potential: 1, plug-in system: HSC 2.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed, Partially equipped variant
