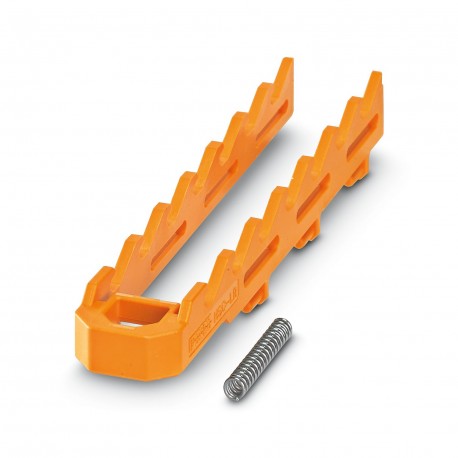

HSC-LR 7U KIT 2003 2201795 PHOENIX CONTACT Mounting base housing
HSC-LR 7U KIT 2003
2201795
PHOENIX CONTACT
10 Pcs.
Mounting base housing
Rail Box, 7U, Lock and Release System, Width: 16.1 mm, Height: 89.95 mm, Depth: 8.8 mm, Color: Orange (2003)
DIN rail housing, 7U, Lock and Release system, width: 16.1 mm, height: 89.95 mm, depth: 8.8 mm, color: orange (similar RAL 2003)
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Assembly note | Refer to the data sheet for the range in the download area. |
Product properties
| Product type | Mounting material |
| Housing type | DIN rail housing |
| Housing series | ME-IO |
| Type | 7U |
| Data management status | |
| Article revision | 01 |
Dimensions
| Width | 16.1 mm |
| Height | 89.95 mm |
| Depth | 8.8 mm |
Material specifications
| Color (Housing) | orange (RAL 2003) |
| Flammability rating according to UL 94 | V0 |
| Housing material | Polyamide |
| Surface characteristics | untreated |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
Mounting
| Mounting type | Snap in |
Packaging specifications
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Orange |
| RAL-number (EF000116) | 2003 |
