View larger
Images are for illustrative purposes only. Please refer to data sheet for details

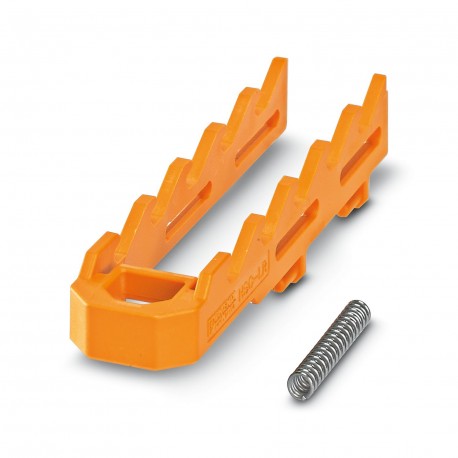

HSC-LR 5U KIT 2003 2201796 PHOENIX CONTACT Mounting base housing
HSC-LR 5U KIT 2003
2201796
PHOENIX CONTACT
10 Pcs.
Mounting base housing
Rail Box, 5U, Lock and Release System, Width: 16.1 mm, Height: 67.95 mm, Depth: 8.8 mm, Color: Orange (2003)
DIN rail enclosures, 5U, Lock and Release system, width: 16.1 mm, height: 67.95 mm, depth: 8.8 mm, colour: orange (similar to RAL 2003)
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2201796 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356933605 |
| Weight per Piece (excluding packing) | 4.520 g |
| Custom tariff number | 85472000 |
| Country of origin | DE (Germany) |
Item properties
| Brief article description | Mounting base housing |
|---|---|
| Type | HSC-LR 5U KIT 2003 |
| Order No. | 2201796 |
| Housing type | Component housing |
| Type | 5U |
| Mounting type | Snap in |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Relative humidity (storage/transport) | 80 % |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Orange |
| RAL-number (EF000116) | 2003 |
