View larger
Images are for illustrative purposes only. Please refer to data sheet for details

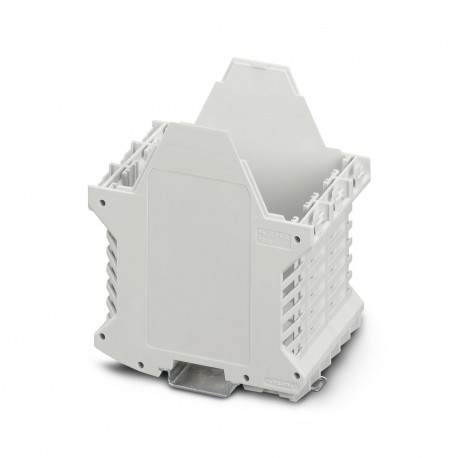

ME 67,5 UT TBUS KMGY 2200544 PHOENIX CONTACT Mounting base housing
ME 67,5 UT TBUS KMGY
2200544
PHOENIX CONTACT
10 Pcs.
Mounting base housing
Rail housing, Lower housing with metal pin, high design, with ventilation slits, width: 67.8 mm, height: 99 mm, depth: 107.3 mm, color: light gray (7035), cross bridge: Rail bus connector (optional), number of poles cross connector: 5
DIN rail box, Lower part of the housing with metal pin, high design, with ventilation slits, width: 67.8 mm, height: 99 mm, depth: 107.3 mm, color: light gray (Similar RAL 7035), cross bridge: Bus connector for rail (optional), number of poles cross connector: 5
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2200544 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 669 (C-1-2013) |
| GTIN | 4046356608091 |
| Weight per Piece (excluding packing) | 80.980 g |
| Custom tariff number | 85472000 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
Technical data
| Power dissipation without gap | 9.1 W |
|---|---|
| Power dissipation with 20 mm gap | 17.5 W |
| Number of positions | 48 |
| 12 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
