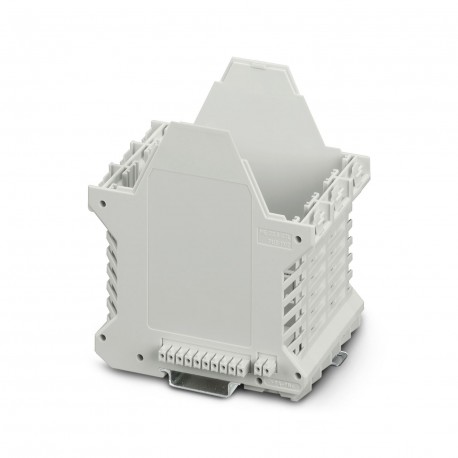

PHOENIX CONTACT ME 67,5 UT/FE BUS/10+2 KMGY ME 67,5 UT/FE BUS/10+2 KMGY 2200541 PHOENIX CONTACT Mounting base housing View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ME 67,5 UT/FE BUS/10+2 KMGY 2200541 PHOENIX CONTACT Mounting base housing

ME 67,5 UT/FE BUS/10+2 KMGY

2200541

PHOENIX CONTACT

10 Pcs.

Mounting base housing Rail box, Bottom of the box with metal pin, with 3 FE contacts, high design, with ventilation slits, width: 67.8 mm, height: 99 mm, depth: 107.3 mm, color: light gray (7035), cross bridge: integrated bus connector, number of poles cross connector: 10+2, Bus connector: 10 parallel contacts, 2 series contacts DIN rail housings, housing base with metal mounting foot, with 3 FE contacts, high type, with ventilation slots, width: 67.8 mm, height: 99 mm, depth: 107.3 mm, colour: light grey (similar to RAL 7035), cross connection: integrated bus connector, no. of poles cross connector: 10+2, bus connector: 10 parallel contacts, 2 serial contacts

Automation > Extruded profile modular housing
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2200541
Packing unit10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 665 (C-1-2013)
GTIN4046356608077
Weight per Piece (excluding packing)117.540 g
Custom tariff number85369010
Country of originDE (Germany)

General

Housing typeComponent housing
Housing materialPolyamide
Color (RAL)light gray (7035)

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C ... 105 °C (depending on power dissipation)

Dimensions

Length99 mm
Height114.5 mm
Width67.5 mm
Depth99 mm

Technical data

Power dissipation without gap9.1 W
Power dissipation with 20 mm gap17.5 W
Number of positions48
12

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 2200541 Low-voltage industrial controls and switchgear (EC002779)
Feature Name Feature Value
Type of enclosure (EF003086) Closed
Housing connectable (EF003088) No
Material (EF002169) Other
Surface finishing (EF006569) Other
Colour (EF000007) Grey
RAL-number (EF000116) 7035
Width (EF000008) 67.8 mm
Height (EF000040) 99 mm
Depth (EF000049) 107.3 mm
