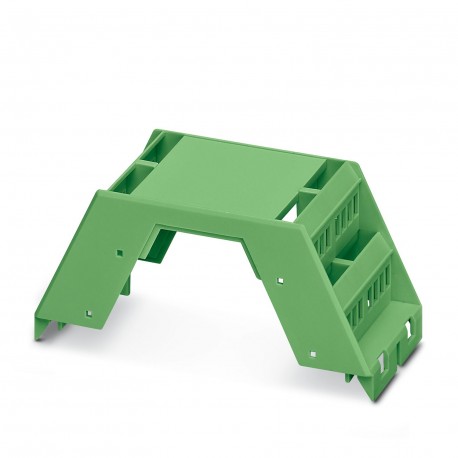

PHOENIX CONTACT ME 45 OT-MKDSO GN ME 45 OT-MKDSO GN 2909390 PHOENIX CONTACT Upper part of housing View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ME 45 OT-MKDSO GN 2909390 PHOENIX CONTACT Upper part of housing

ME 45 OT-MKDSO GN

2909390

PHOENIX CONTACT

10 Pcs.

Upper part of housing Rail housing, Top of the terminal block housing for printed circuit board with screw connection, width: 45.2 mm, height: 99 mm, depth: 45.85 mm, color: green (6021) DIN rail housing, Upper housing part for PCB terminal blocks with screw connection, width: 45.2 mm, height: 99 mm, depth: 45.85 mm, color: green (similar RAL 6021)

Automation > Extruded profile modular housing
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Assembly noteRefer to the data sheet for the range in the download area.
Product properties
Product typeUpper housing part
Housing typeDIN rail housing
Housing seriesME
Product familyME 45..
Max. number of positions40 (pitch: 3.5 mm)
32 (pitch: 5 mm)
)
Set comprises2909345 ME 45 OT-MKDSO SET
TypeUpper housing part for PCB terminal blocks with screw connection
Ventilation openings presentno
Data management status
Article revision01
Dimensions
Dimensional drawingkdtvsvmizu.jpg
Width45.2 mm
Height99 mm
Depth45.85 mm
Depth from base support surface38.5 mm
PCB design
PCB thickness1.4 mm ... 1.8 mm
Material specifications
Color (Housing)green (RAL 6021)
Flammability rating according to UL 94V0
CTI according to IEC 60112600
Housing materialPolyamide
Surface characteristicsuntreated
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.15 mm (10 Hz ... 58.1 Hz)
Acceleration2g (58.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test directionsX-, Y- and Z-axis
Glow-wire test
SpecificationIEC 60695-2-11:2014-02
Temperature850 °C
Time of exposure30 s
Thermal stability / ball thrust test
SpecificationIEC 60695-10-2:2014-02
Temperature125 °C
Test duration1 h
Force20 N
Mechanical strength / tumbling barrel
SpecificationIEC 60998-1:2002-12
Height of fall50 cm
Frequency10
Shocks
SpecificationIEC 60068-2-27:2008-02
Pulse shapeHalf-sine
Acceleration15g
Shock duration11 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
Degree of protection (IP code)
SpecificationIEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08
Ambient conditions
Max. IP code to attainIP20
Ambient temperature (operation)-40 °C ... 105 °C (depending on power dissipation)
Ambient temperature (storage/transport)-40 °C ... 55 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Relative humidity (storage/transport)80 %
PCB data
Number of PCB holders2
Type of PCB mountSlot
Thickness of the PCB1.4 mm ... 1.8 mm
Mounting
Mounting typeLatching with lower housing part
Packaging specifications
Type of packagingpacked in cardboard
Outer packaging typeCarton

ETIM for 2909390 Low-voltage industrial controls and switchgear (EC002779)
Feature Name Feature Value
Type of enclosure (EF003086) Closed
Housing connectable (EF003088) No
Suitable for rail mounting (EF003972) No
Wall mounting possible (EF003973) No
With integrated PCB-mounting connection system (EF003087) No
Surface finishing (EF006569) Other
Colour (EF000007) Green
RAL-number (EF000116) 6021
Width (EF000008) 45.2 mm
Height (EF000040) 99 mm
Depth (EF000049) 45.85 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
