View larger
Images are for illustrative purposes only. Please refer to data sheet for details

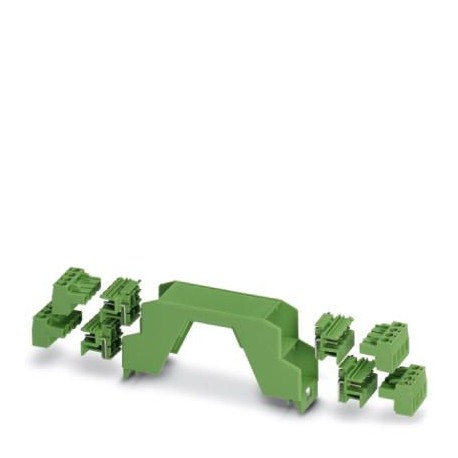

ME 22,5 OT-MSTBO SET 2907444 PHOENIX CONTACT Upper part of housing
ME 22,5 OT-MSTBO SET
2907444
PHOENIX CONTACT
1 Pcs.
Upper part of housing
Rail box, Set consisting of the top of the housing and 4 units of base housings for printed circuit board (4 poles) and 4 units of terminal blocks for printed circuit board with screw connection (4 poles), width: 22.6 mm, height: 99 mm, depth: 45.85 mm, color: green (6021)
Automation > Electronic enclosure
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2907444 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 671 (C-1-2013) |
| GTIN | 4017918131531 |
| Weight per Piece (excluding packing) | 46.800 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Technical data
| Connection in acc. with standard | CUL |
|---|---|
| Nominal voltage UN | 300 V |
| Nominal current IN | 12 A |
| AWG/kcmil | 30-12 |
| Indicator1 | CUL1 |
| Number of positions | 16 |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Articles in set
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Other |
| Colour (EF000007) | Green |
