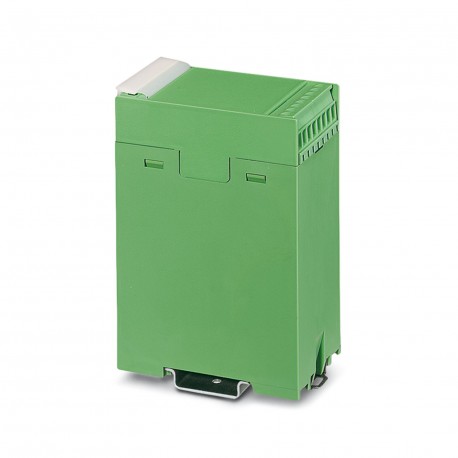

EG 45-GMF/PC GN 2764849 PHOENIX CONTACT Electronic housing
EG 45-GMF/PC GN
2764849
PHOENIX CONTACT
10 Pcs.
Electronic housing
Housing, Bottom of the housing with metal pin, without ventilation slits, width: 45 mm, height: 75 mm, color: green (6021), cross bridge: without bus connector, number of poles cross connector: not relevant
Component housing, Lower housing part with metal foot catch, without vents, width: 45 mm, height: 75 mm, color: green (similar RAL 6021), cross connection: without bus connector, number of positions cross connector: not relevant
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Enclosure bottom part |
| Housing type | Component housing |
| Housing series | EG |
| Product family | EG..-G |
| Type | Lower housing part closed, housing cover necessary to complete the module |
| Number of positions | 16 |
| Max. number of positions | 0) |
| Type | Lower housing part with metal foot catch |
| Ventilation openings present | no |
| Data management status | |
| Article revision | 07 |
Dimensions
| Dimensional drawing |  |
| Width | 45 mm |
| Height | 75 mm |
| PCB design | |
| PCB thickness | 1.4 mm ... 1.8 mm |
Material specifications
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| Housing material | Polycarbonate |
| Surface characteristics | untreated |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
PCB data
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
Mounting
| Mounting type | DIN rail mounting |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Green |
| RAL-number (EF000116) | 6021 |
| Width (EF000008) | 45 mm |
| Height (EF000040) | 75 mm |
