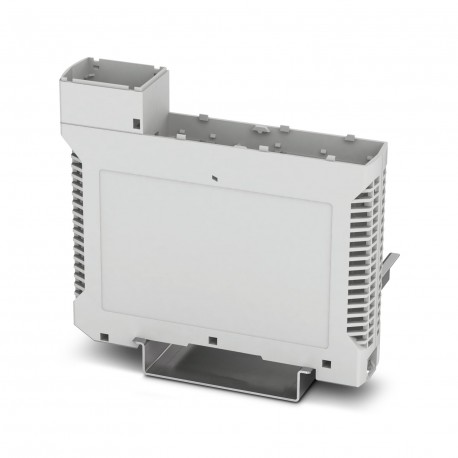

ME PLC 40 B BUS 10/10 GY7035 2201499 PHOENIX CONTACT Mounting base housing
ME PLC 40 B BUS 10/10 GY7035
2201499
PHOENIX CONTACT
10 Pcs.
Mounting base housing
Rail housing, Bottom of housing with metal pin, for 10/10 bus connectors, width: 39.7 mm, height: 180.1 mm, depth: 137.7 mm, colour: light grey (7035), cross bridge: Rail bus connector (optional), number of poles cross connector: 10
DIN rail housing, Lower housing part with metal foot catch, for 10/10 bus connector, width: 39.7 mm, height: 180.1 mm, depth: 137.7 mm, color: light gray (similar RAL 7035), cross connection: DIN rail connector (optional), number of positions cross connector: 10
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Assembly note | Refer to the data sheet for the range in the download area. |
Product properties
| Product type | Enclosure bottom part |
| Housing type | DIN rail housing |
| Housing series | ME PLC |
| Max. number of positions | 36 (pitch: 5 mm) |
| Type | Lower housing part with metal foot catch |
| Ventilation openings present | yes |
| Data management status | |
| Article revision | 02 |
Dimensions
| Dimensional drawing |  |
| Width | 39.7 mm |
| Height | 180.1 mm |
| Depth | 137.7 mm |
| Depth from top edge of DIN rail | 131.1 mm |
| Depth from top edge of DIN rail to support point on upper part | 108 mm |
| PCB design | |
| PCB thickness | 1.4 mm ... 1.8 mm |
Material specifications
| Color (Housing) | light gray (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 225 |
| Housing material | Polycarbonate |
| Surface characteristics | untreated |
Environmental and real-life conditions
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 95 % |
PCB data
| Number of PCB holders | 1 |
| Type of PCB mount | Latching |
| Total PCB surface | 16000 mm² |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
Mounting
| Mounting type | DIN rail mounting |
Packaging specifications
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
