View larger
Images are for illustrative purposes only. Please refer to data sheet for details

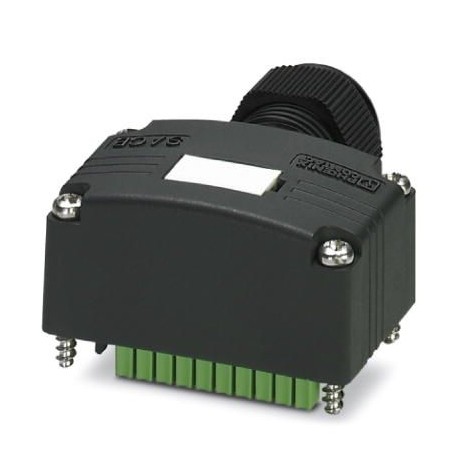

SACB-C-H180-8/16 SCO P 1453229 PHOENIX CONTACT Connector hood
SACB-C-H180-8/16 SCO P
1453229
PHOENIX CONTACT
1 Pcs.
Connector hood
Connection cover with integrated plug-in connector, for M12 sensor/actuator boxes with SPEEDCON plastic thread and plug-in screw connection, for 4, 6 or 8 plug-in stations
Cables > Passive sensor-actuator interface (without cable)
QUICKON Installation System (QPD)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1453229 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 269 (C-2-2017) |
| GTIN | 4046356553452 |
| Weight per Piece (excluding packing) | 46.200 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
General
| Rated voltage | 120 V |
|---|---|
| Current carrying capacity per I/O signal | 2 A |
| Current carrying capacity per slot | 4 A |
| Total rated current | 10 A |
| Number of slots | 8 |
| Sensor/actuator connection system | M12-SPEEDCON-socket |
| Note | For details about the PCB connectors used, refer to the technical data for MC 1,5/10-STF-3,5 (1847204) |
Master cable data/connection data
| Connection method | Pluggable screw connection |
|---|---|
| Conductor cross section min. (signal) | 0.14 mm² |
| Conductor cross section max. (signal) | 1.5 mm² |
| Conductor cross section AWG min. (signal) | 26 |
| Conductor cross section AWG max. (signal) | 16 |
| Stripping length (signal) | 7 mm |
| Conductor cross section min. (energy) | 0.14 mm² |
| Conductor cross section max. (energy) | 1.5 mm² |
| Conductor cross section AWG min. (energy) | 26 |
| Conductor cross section AWG max. (energy) | 16 |
| External cable diameter min. | 7 mm |
| External cable diameter max. | 12 mm |
| Stripping length | 50 mm (Master cable) |
| Tightening torque, cover screw | 1 Nm |
| Tightening torque, union nut | 2.5 Nm |
Insulation material
| Housing material | PBT |
|---|---|
| Material of contact, master cable side | CU alloy |
| Material of contact surface, master cable side | Sn |
| Material of the contact carrier on the master cable side | PA |
| Sealing material | NBR |
Pin assignment
| Slot/position = Wire color or connection | 1 / 4 (A) = 1 / 4 = WH |
|---|---|
| 1 / 2 (B) = 1 / 2 = GY/PK | |
| 2 / 4 (A) = 2 / 4 = GN | |
| 2 / 2 (B) = 2 / 2 = RD/BU | |
| 3 / 4 (A) = 3 / 4 = YE | |
| 3 / 2 (B) = 3 / 2 = WH/GN | |
| 4 / 4 (A) = 4 / 4 = GY | |
| 4 / 2 (B) = 4 / 2 = BN/GN | |
| 5 / 4 (A) = 5 / 4 = PK | |
| 5 / 2 (B) = 5 / 2 = WH/YE | |
| 6 / 4 (A) = 6 / 4 = RD | |
| 6 / 2 (B) = 6 / 2 = YE/BN | |
| 7 / 4 (A) = 7 / 4 = BK | |
| 7 / 2 (B) = 7 / 2 = WH/GY | |
| 8 / 4 (A) = VT | |
| 8 / 2 (B) = 8 / 2 = GY/BN | |
| 1-8 / 1 (+ 120 V) = UN= BN | |
| 1-8 / 3 (0 V) = 0 V = BU | |
| 1-8 / 5 (PE) = PE = GN/YE |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140815eCl@ss 4.127140815eCl@ss 5.027143423eCl@ss 5.127250300eCl@ss 6.027279200eCl@ss 7.027279219eCl@ss 8.027279219eCl@ss 9.027440108
| Feature Name | Feature Value |
|---|---|
| Connectable conductor cross section (EF008200) | 0.14 mm² |
| Cable outer diameter for cable gland (EF007302) | 7 mm |
| Number of sensor-/actuator-slots (EF006939) | 8 |
| Number of channels per connector slot (EF006885) | 2 |
| Type of branches for sensor-/actuator cables (EF006972) | M12 |
| Operating voltage (EF003983) | 120 V |
| Max. current carrying capacity per I/O signal (EF004037) | 10 A |
| Max. total current (EF004039) | 10 A |
| With LED indication (EF005950) | No |
| With potential separation (EF003272) | No |
| Connection for NPN-sensors (EF006817) | No |
| Operating temperature (EF002393) | -25 °C |
| Degree of protection (IP) (EF005474) | IP65 |
| Explosion safety category for gas (EF003997) | Other |
| Explosion safety category for dust (EF003998) | Other |
| Width (EF000008) | 54 mm |
| Height (EF000040) | 25 mm |
