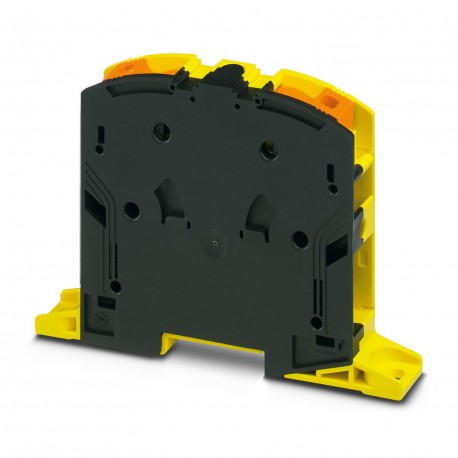

PTPOWER 50-FE-F 3260064 PHOENIX CONTACT High-current terminal block

PTPOWER 50-FE-F

3260064

PHOENIX CONTACT

10 Pcs.

High-current terminal block Current terminal, nominal voltage: 1000 V, nominal current: 150 A, number of connections: 2, number of poles: 1, connection type: PowerTurn connection, 1st floor, cross-section: 10 mm² - 70 mm², mounting type: direct screwed, color: black/yellow High Current Terminal, Nominal Voltage: 1000 V, Rated Current: 150 A, Number of Connections: 2, Number of Poles: 1, Connection Type: PowerTurn Connection, 1st Floor, Cross Section: 10 mm2 - 70 mm2, Mounting Type: Direct Screw-On, Colour: Black/Yellow

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3260064
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 127 (C-1-2017)
GTIN4046356998857
Weight per Piece (excluding packing)163.100 g
Custom tariff number85369010
Country of originPL (Poland)

General

Number of positions1
Number of levels1
Number of connections2
Potentials1
Nominal cross section50 mm²
Colorblack/yellow
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition4.73 W
Maximum load current150 A (with 50 mm² conductor cross section)
Nominal current IN150 A
Nominal voltage UN1000 V AC
1500 V DC
Open side panelNo
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width20 mm
Length101 mm
Height96 mm
Hole diameter6.5 mm
Drill hole spacing123.4 mm
Pitch20 mm

Connection data

Connection methodPower-Turn connection
Connection in acc. with standardIEC 60947-7-1
Conductor cross section solid min.10 mm²
Conductor cross section solid max.70 mm²
Conductor cross section AWG min.8
Conductor cross section AWG max.2/0
Conductor cross section flexible min.10 mm²
Conductor cross section flexible max.70 mm²
Min. AWG conductor cross section, flexible8
Max. AWG conductor cross section, flexible2/0
Conductor cross section flexible, with ferrule without plastic sleeve min.10 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.50 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.10 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.50 mm²
Cross section with insertion bridge solid min.10 mm²
Cross section with insertion bridge, solid max.50 mm²
Cross section with insertion bridge stranded min.10 mm²
Cross section with insertion bridge, stranded max.50 mm²
Cross section with insertion bridge stranded, with ferrule without plastic sleeve min.10 mm²
Cross section with insertion bridge stranded, with ferrule without plastic sleeve max.50 mm²
Cross section with insertion bridge stranded, with ferrule without plastic sleeve min.10 mm²
Cross section with insertion bridge stranded, with ferrule with plastic sleeve max.50 mm²
Stripping length30 mm ... 32 mm
Internal cylindrical gageA10

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3260064 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 10 mm²
Connectable conductor cross section solid-core (EF007337) 10 mm²
Rated current In (EF008250) 150 A
Rated voltage (EF000228) 1000 V
Type of electrical connection 1 (EF002526) Other
Type of electrical connection 2 (EF002527) Other
Number of clamp positions per level (EF002660) 2
Suitable for conductor material (EF012572) Aluminium/copper
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 20 mm
Height (EF000040) 136.1 mm
Depth (EF000049) 96 mm
Closing plate required (EF002525) No
Colour (EF000007) Multi colour
Internally connected stages (EF002661) Yes
